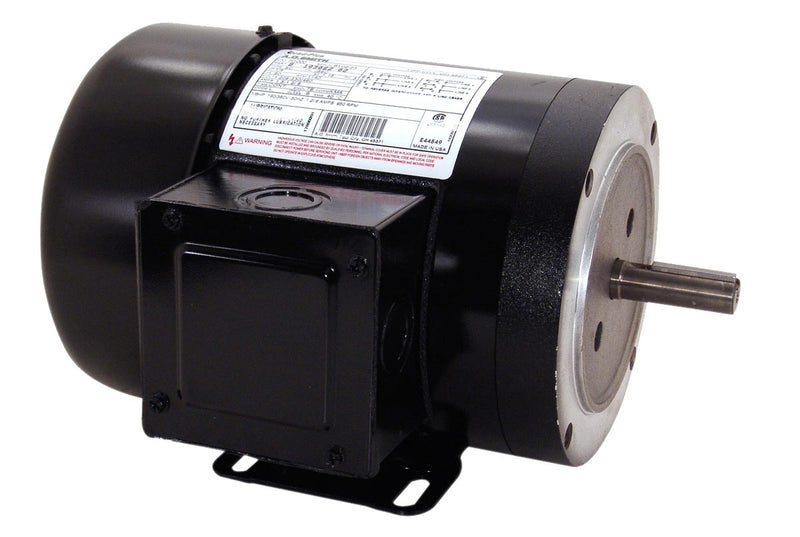

Century AO Smith H1003 3-Phase C-Face Motor, 1/3 HP, 1140 RPM, 208-230, 460V, 56C Frame

CenturySKU: c2091598
MPN : H1003
Weight : 15.0 lb
filler

Price:
$534.56 $651.90

Availability : Usually Ships in 3-5 Business Days
  • Features: 40 degree C ambient

Item: General Purpose AC Motor, Motor Type: 3-Phase, HP: 1/3, Nameplate RPM: 1140, Voltage: 208-230/460, Frame: 56C, Enclosure: Totally Enclosed, Rotation: CW/CCW, Hz: 60, Phase: 3, Speeds: 1, Service Factor: 1.15, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 1.875", Shaft Height: 3.5", Shaft Dia.: 0.625", "C" Dim: 11.34, Protection: None, Thermal Protection: No, Cooling: Fan Cooled.

ItemGeneral Purpose AC Motor
Motor Type3-Phase
HP1/3
Nameplate RPM1140
Voltage208-230/460
Frame56C
EnclosureTotally Enclosed
RotationCW/CCW
Hz60
Phase3
Speeds1
Service Factor1.15
Insulation ClassB
BearingsBall
BaseRigid
Shaft TypeKey
Shaft Number1
Shaft Length1.875"
Shaft Height3.5"
Shaft Dia.0.625"
"C" Dim11.34
ProtectionNone
Thermal ProtectionNo
CoolingFan Cooled
