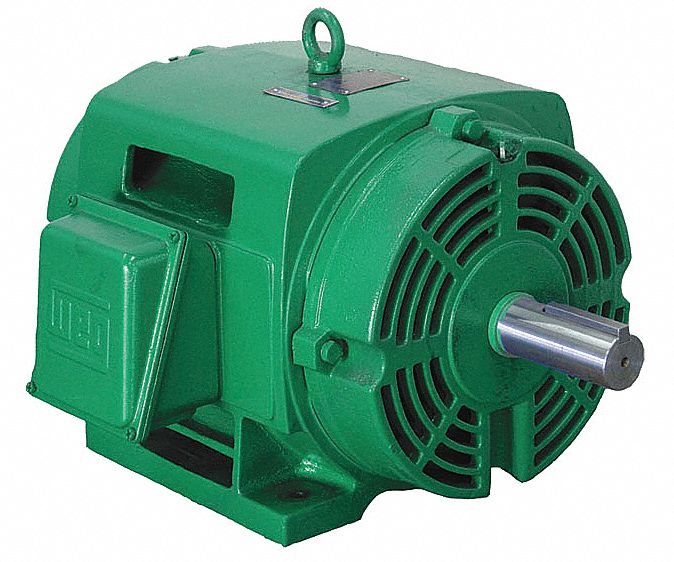

WEG 20 HP, General Purpose Motor, 3-Phase, 1770 Nameplate RPM, 575 Voltage, 256T Frame - 02018OT3H256T

WEGSKU: C1517621
MPN : 02018OT3H256T
Weight : 327.0 lb

filler

Price:
$1,555.65 $2,509.11

Availability : Usually Ships in 7 Business Days

General Purpose Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Open Dripproof; HP: 20; Nameplate RPM: 1770; Frame: 256T; Voltage: 575; Hz: 60; Phase: 3; Full Load Amps: 20; No. of Speeds: 1; Motor Mounting Type: Rigid Base; Motor Mounting Position: Horizontal; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Frame Material: Cast Iron; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 1 5/8 in; Shaft Length: 4 in; Length Less Shaft: 18 3/8 in; Overall Length: 22 3/8 in; Motor Shaft Design: Keyed; Standards: CE, CSA, UL; Duty: Continuous; Motor Efficiency Group: NEMA Premium Efficient; Nominal Efficiency: 92.4 %; CC Number: CC029A; Manufacturers Warranty Length: 3 yr; Green Environmental Attribute: Product Contributes To Reducing Energy Consumption; Green Certification or Other Recognition: NEMA Premium(R) Rated

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP20
Nameplate RPM1770
Frame256T
Voltage575
Hz60
Phase3
Full Load Amps20
No. of Speeds1
Motor Mounting TypeRigid Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialCast Iron
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1 5/8 in
Shaft Length4 in
Length Less Shaft18 3/8 in
Overall Length22 3/8 in
Motor Shaft DesignKeyed
StandardsCE, CSA, UL
DutyContinuous
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency92.4 %
CC NumberCC029A
Manufacturers Warranty Length3 yr
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Green Certification or Other RecognitionNEMA Premium(R) Rated
