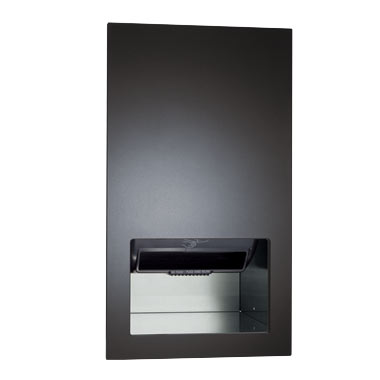

This sophisticated automatic paper towel dispenser is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto Collection its minimalist appeal.Proximity sensing no-touch unit holds and dispenses one 8" diameter [203] x 8" wide [203] standard towel roll up to 800 ft. (244m) long and one 8" wide [203] stub roll up to 4" diameter [102] and automatically changes over to main roll when finished with stub roll when feed tabs are properly engaged. Dispenser is powered by (4) D-size batteries (not supplied) and operates automatically to activate towel dispensing when hands are placed in sensor zone. At each activation unit feeds out a length of towel selected by owner by setting length, delay and paper saver switches.
Finished Wall Opening (FWO):
16-1/8" x 28-1/16" x 10" (410 x 713 x 254 mm) min
Unit Size:
16-1/16" x 28" x 9-13/16" (408 x 711 x 248 mm)
| Dispenser Type | Automatic |
| Paper Towel Type | Roll Towel |
| Dispenser Material | Stainless Steel |
| Mounting | Recessed |
