Please note: once in production, ASI Piatto items cannot be canceled or returned. Please double check your measurements before ordering.

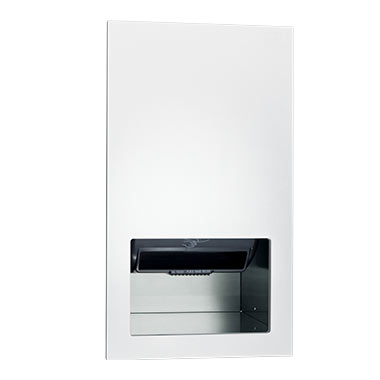

This sophisticated automatic paper towel dispenser is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto Collection its minimalist appeal.Proximity sensing no-touch unit holds and dispenses one 8" diameter [203] x 8" wide [203] standard towel roll up to 800 ft. (244m) long and one 8" wide [203] stub roll up to 4" diameter [102] and automatically changes over to main roll when finished with stub roll when feed tabs are properly engaged. Dispenser is powered by AC plug-in adapter Ð C-UL-US and CE approved internal low-voltage adapter (supplied) using 110- 240VAC, 50/60 Hz and providing output of 5VDC @ 1A and operates automatically to activate towel dispensing when hands are placed in sensor zone. At each activation unit feeds out a length of towel selected by owner by setting length, delay and paper saver switches.
Finished Wall Opening (FWO):
16-1/8" x 28-1/16" x 10" (410 x 713 x 254 mm) min
Unit Size:
16-1/16" x 28" x 9-13/16" (408 x 711 x 248 mm)
| Dispenser Type | Automatic |
| Paper Towel Type | Roll Towel |
| Dispenser Material | Stainless Steel |
| Mounting | Recessed |
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
