Please note: once in production, ASI Piatto items cannot be canceled or returned. Please double check your measurements before ordering.

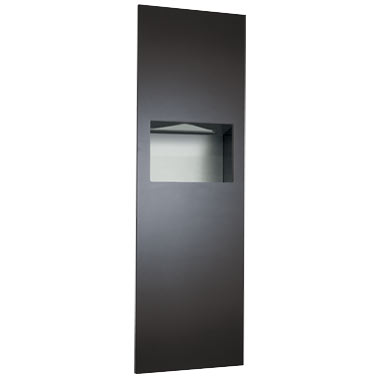

This sophisticated combination paper towel and waste receptacle cabinet is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto Collection its minimalist appeal.Dispenses 600 C-fold, 800 multi-fold, or 1,100 standard single-fold towels (with provided adapter). 9 gal. (34 L) stainless steel waste receptacle. Rolled edged finger hole allows for easy servicing and removal. Paper towels are manually withdrawn through dispensing slot. An adjustable towel adapter ensures that towels feed properly until depleted. Unit will continue to feed properly when reloaded with a partial load in place. Refill dispenser by unlatching door and replacing towels for an empty or partially empty unit.
Finished Wall Opening (FWO):
17-5/16" x 54-1/16" x 6-11/16" (440 x 1373 x 170 mm) min
Unit Size:
17-1/4" x 54" x 6-9/16" (438 x 1372 x 166 mm)
| Dispenser Type | Combination Towel & Waste |
| Paper Towel Type | Roll Towel |
| Dispenser Material | Stainless Steel |
| Mounting | Recessed |
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
