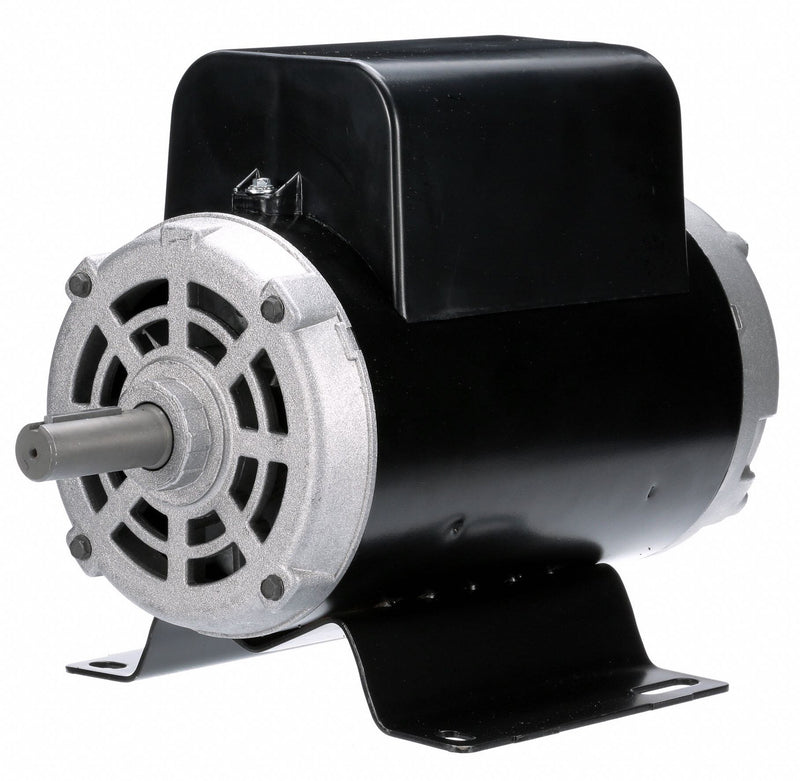

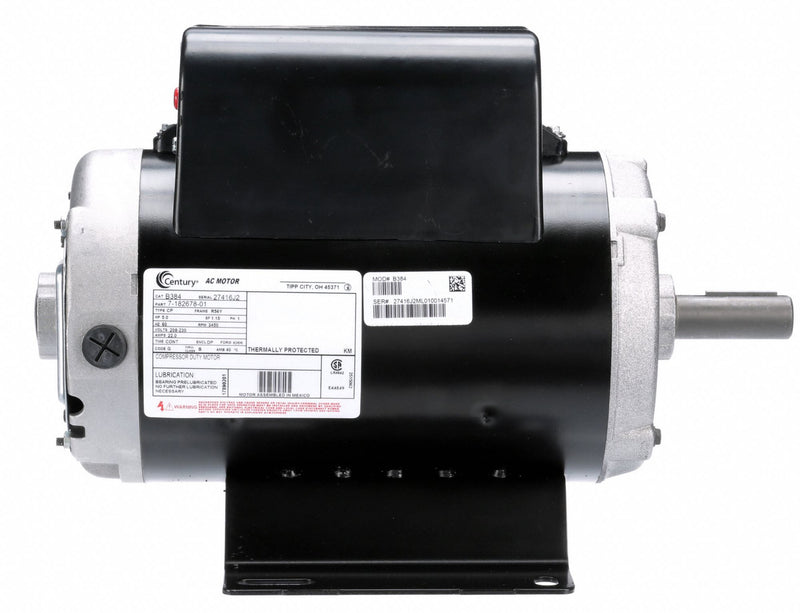

Designed for light-duty and intermittent use, this CENTURY air compressor motor is a direct replacement for Century air compressors. Mechanical features help provide long life in high-tension, belt-type loads, which can typically shorten motor life. The motors high breakdown torque helps ensure dependable service.
| Item | Light Duty Air Compressor Motor |
| Motor Application | Air Compressor |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Open Dripproof |
| HP | 5 |
| Nameplate RPM | 3450 |
| Frame | 56Y |
| Voltage | 208-230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 22 |
| Motor Mounting Type | Rigid Base |
| Motor Thermal Protection | Manual |
| Ins. Class | B |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CCWSE |
| Motor Shaft Design | Keyed |
| Overall Length | 14 5/8 in |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| Duty | Continuous |
| Standards | CSA Certified, UL Recognized |
| Capacitor Included | Yes |
