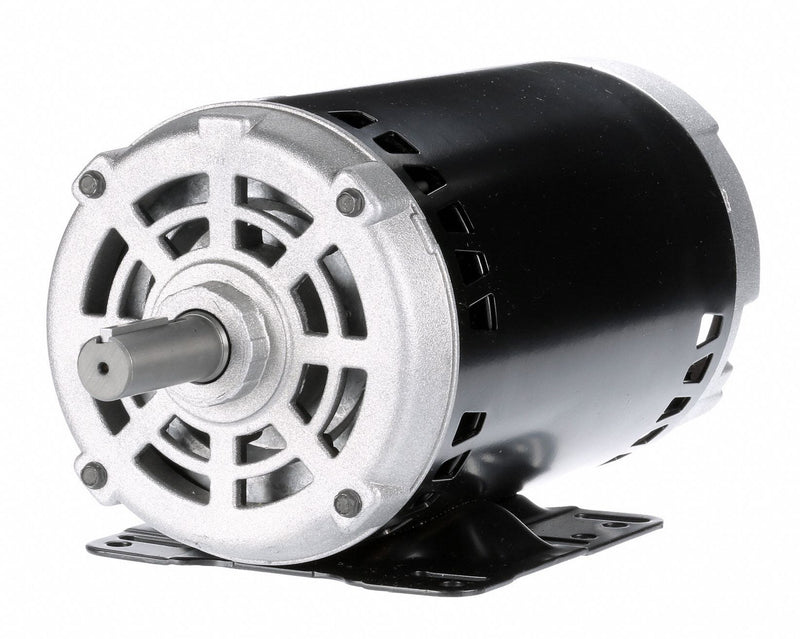

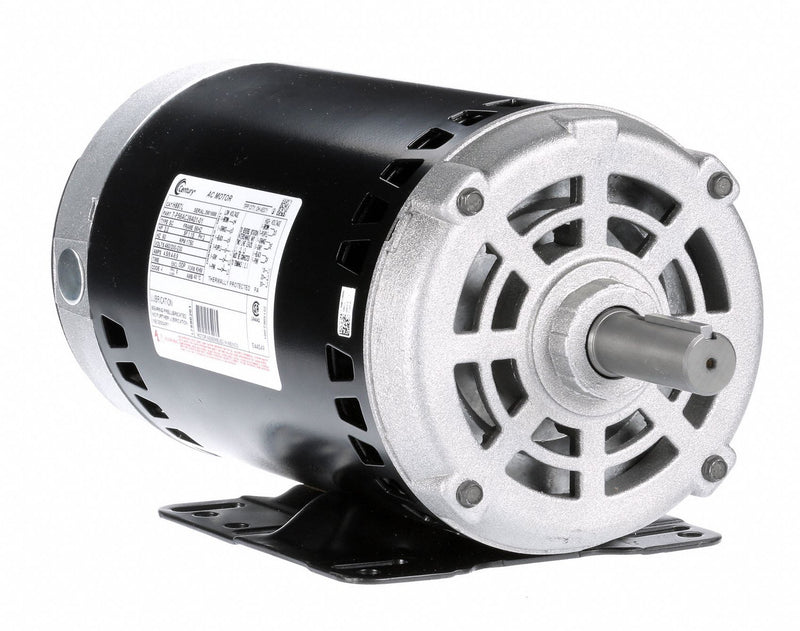

Use with pumps, industrial fans, blowers, and exhaust fans.
| Item | Belt Drive Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Design | 3-Phase |
| HP | 3 |
| No. of Speeds | 1 |
| Nameplate RPM | 1725 |
| Voltage | 200-230/460 |
| Frame | 56HZ |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | All Angle |
| Hz | 60 |
| Full Load Amps | 9.4-8.9/4.5 |
| Motor Thermal Protection | Auto |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 5/16 in |
| Length Less Shaft | 12 1/4 in |
| Overall Length | 14 9/16 in |
| Body Dia. | 6 1/2 in |
| Mounting Stud Pattern | 5-13/16 in x 5-13/16 in |
| Nominal Efficiency | 83.1 % |
| Duty | Continuous |
| Phase | 3 |
| Standards | CSA Certified (LR4642), UL Recognized (E44549) |
| Voltage Compatibility | 200, 200-230, 200-230/440, 200-230/460, 208, 208-230/460, 220/460, 230, 230/460, 240, 460 |
