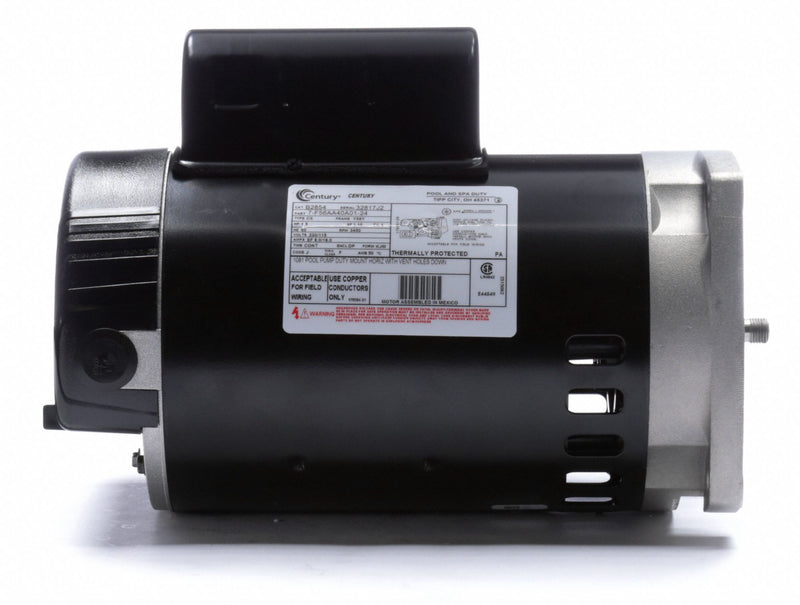

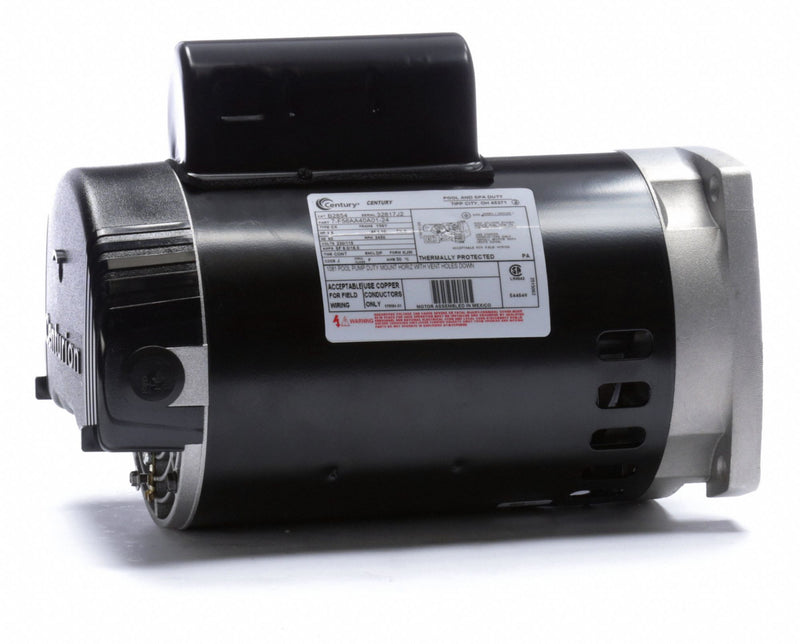

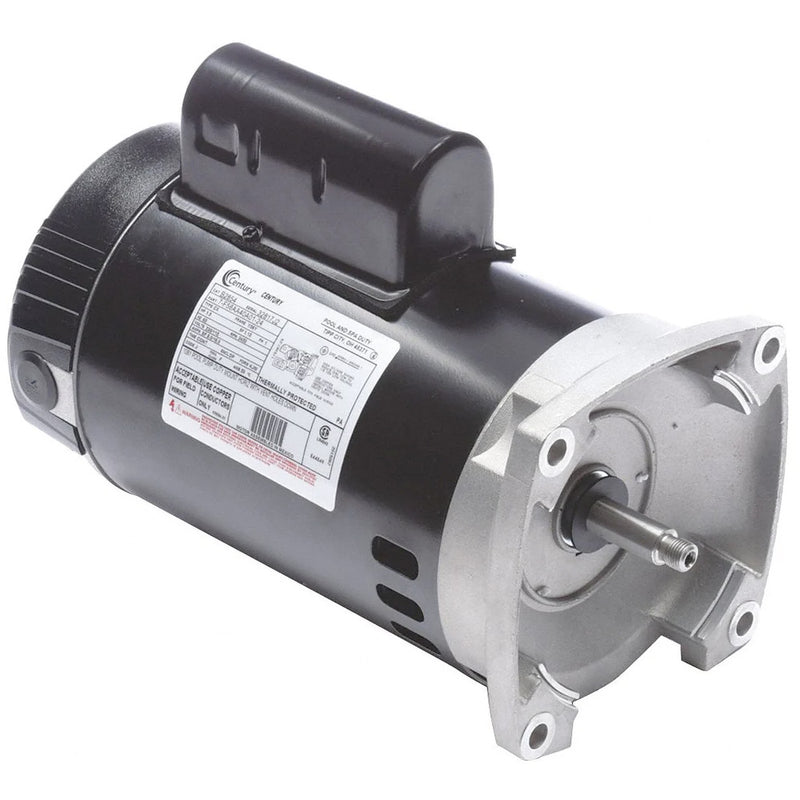

This single-compartment, permanent split capacitor motor can be used as an equivalent replacement for most popular pool and spa manufacturers' pumps. Must equal or exceed service factor and HP for proper replacement. Auto thermal protection helps protect against damage caused by overheating. Ball bearings. UL Recognized and CSA Certified.
| Item | Pool and Spa Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Pool and Spa Pump |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Dripproof |
| HP | 1-1/2 |
| Nameplate RPM | 3450 |
| Frame | 56Y |
| Motor Shaft Rotation | CCWSE |
| Voltage | 115/230 |
| Full Load Amps | 16/8 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Face |
| Motor Bearings | Ball |
| Finish | Black |
| Motor Flange Material | Aluminum |
| Shaft | Threaded 1/2-20 UNF-2A RH (External) and 1/4-20 UNC-2B LH (Internal) |
| Shaft Material | 303 Stainless Steel |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1.1 |
| Ambient Temperature | 50 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 7/16 in |
| Ins. Class | F |
| RPM Range | 3001-3600 |
| Motor Efficiency Group | Standard Efficient |
| Standards | CSA Certified, UL Recognized |
| Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
