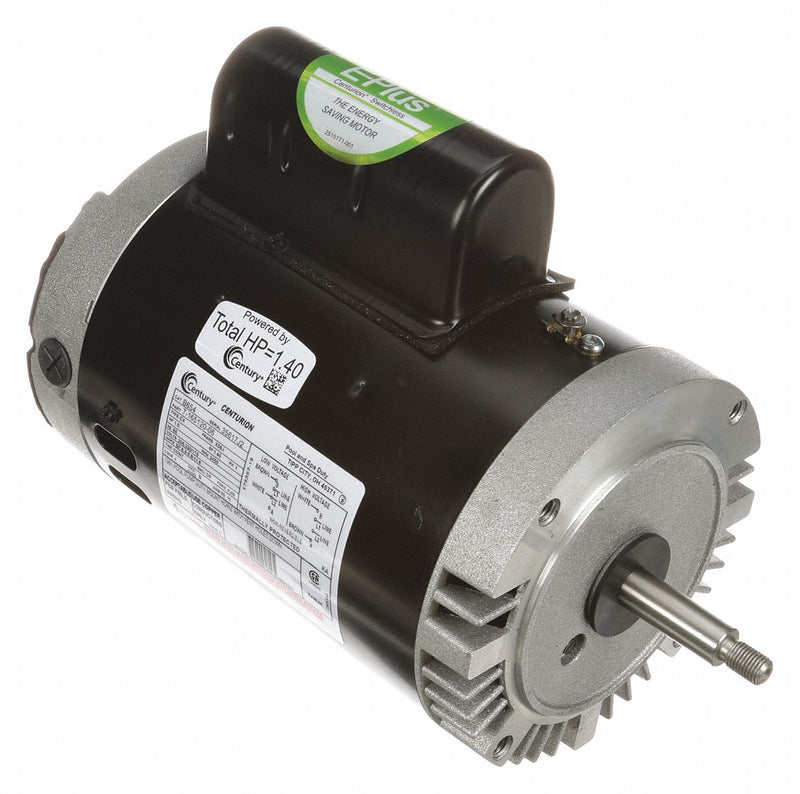

Century 1 HP Pool and Spa Pump Motor, Permanent Split Capacitor, 115/208-230V, 56J Frame - B654

CenturySKU: C1564511
MPN : B654
Weight : 32.0 lb

filler

Price:
$375.50 $457.93

Availability : Usually Ships in 1-2 Business Days

Motors are equivalent replacements for most popular pool and spa pump manufacturers' pumps. Sealed switch design prevents water infiltration. Moistureheat-resistant bearing lubricant.

ItemPool and Spa Pump Motor
Motor ApplicationPump
Motor Sub ApplicationPool and Spa Pump
Motor DesignPermanent Split Capacitor
Motor Enclosure DesignOpen Dripproof
HP1
Nameplate RPM3450
Frame56J
Motor Shaft RotationCCWSE
Voltage115/208-230
Full Load Amps11.8/6.4-5.9
Phase1
Hz60
Motor Mounting TypeFace
Motor BearingsBall
FinishBlack
Motor Flange MaterialAluminum
ShaftThreaded 7/16"-20 UNF-2A RH 11/16 in From End
Shaft Material303 Stainless Steel
Motor Thermal ProtectionAuto
Motor Service Factor1.4
Ambient Temperature50 Degrees C
Shaft Dia.5/8 in
Shaft Length2 9/16 in
Ins. ClassB
RPM Range3001-3600
Motor Efficiency GroupEnergy Efficient
StandardsCSA Certified (LR43341/LR94643), UL 1081 Approvable, UL Recognized (E44549/E25022)
Voltage Compatibility115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240
