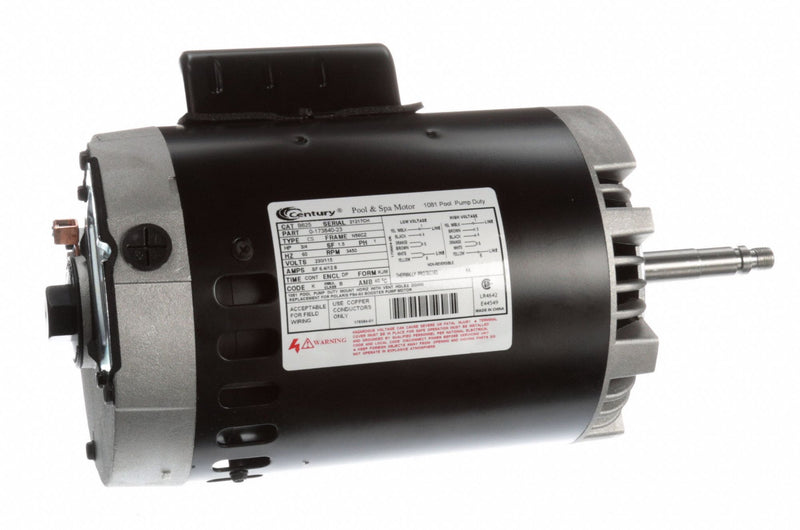

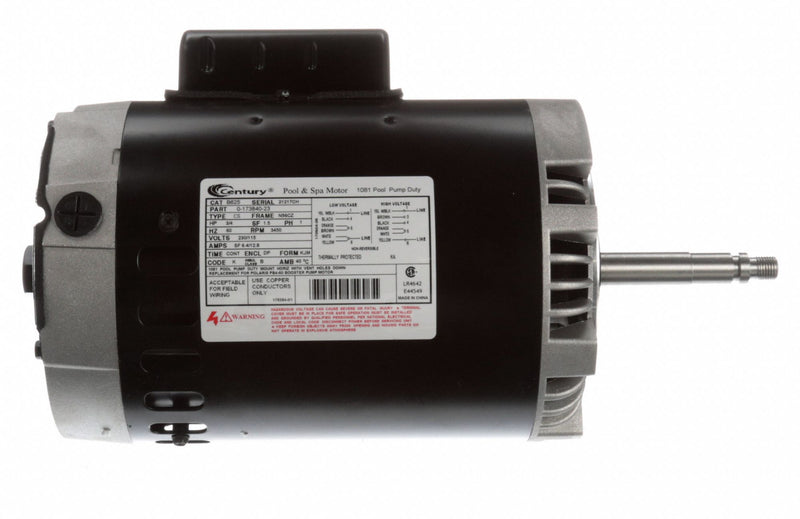

This replacement motor can be used with most leading brands of tub, spa, and above-ground pool pumps with threaded-shaft drives. 12 and 3 o'clock conduit entries provide wiring flexibility. UL Recognized and CSA Certified.
| Item | Pool and Spa Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Pool and Spa Pump |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| HP | 3/4 |
| Nameplate RPM | 3450 |
| Frame | 56CZ |
| Motor Shaft Rotation | CCWSE |
| Voltage | 115/230 |
| Full Load Amps | 12.8/6.4 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Face |
| Motor Bearings | Ball |
| Finish | Black |
| Motor Flange Material | Aluminum |
| Shaft | Threaded 1/2-20 UNF-2A RH |
| Shaft Material | 303 Stainless Steel |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1.5 |
| Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 3 3/4 in |
| Ins. Class | B |
| RPM Range | 3001-3600 |
| Motor Efficiency Group | Standard Efficient |
| Standards | CSA Certified, UL Recognized |
| Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
