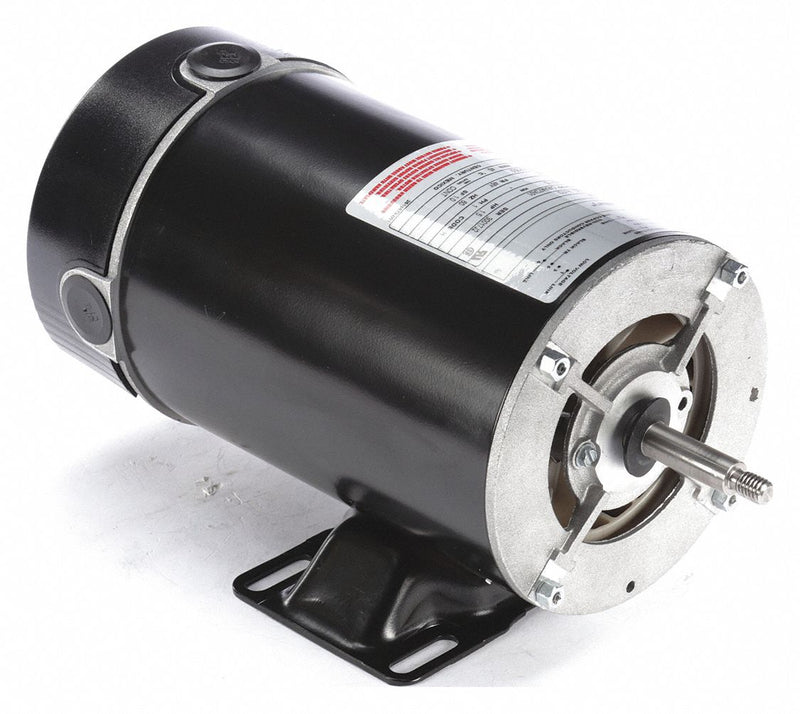

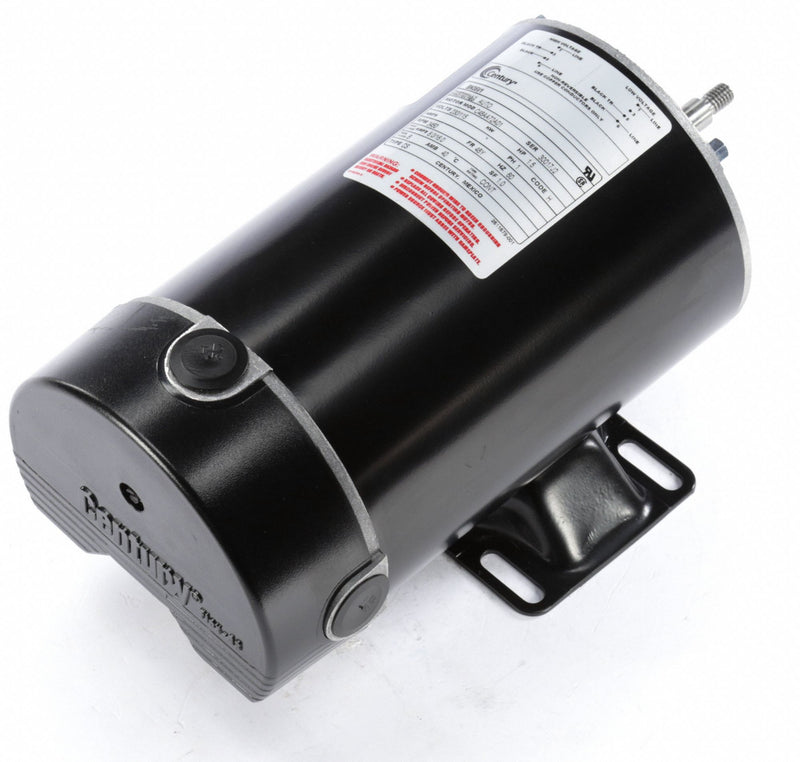

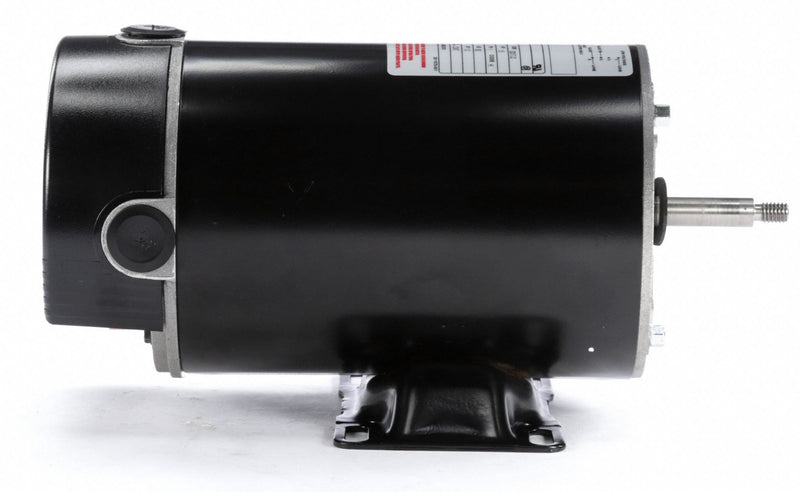

Pool and Spa Pump Motor; Motor Application: Pump; Motor Sub Application: Pool and Spa Pump; Motor Design: Capacitor-Start; Motor Enclosure Design: Open Dripproof; HP: 1-1/2; Nameplate RPM: 3450; Frame: 48Y; Motor Shaft Rotation: CCWSE; Voltage: 115/230; Full Load Amps: 16/8; Phase: 1; Hz: 60; Motor Mounting Type: Rigid Base; Motor Bearings: Ball; Finish: Black; Shaft: Threaded 3/8-16 UNC-2A; Shaft Material: Stainless Steel; Motor Thermal Protection: Auto; Motor Service Factor: 1; Shaft Dia.: 1/2 in; Shaft Length: 1 13/16 in; Ins. Class: B; RPM Range: 3001-3600; Standards: 1563, 1795 Approvable, CSA Certified (LR43341), UL 1081, UL Recognized (E25022/46412); Voltage Compatibility: 115, 115/230, 120, 120/240, 230, 240
| Item | Pool and Spa Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Pool and Spa Pump |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| HP | 1-1/2 |
| Nameplate RPM | 3450 |
| Frame | 48Y |
| Motor Shaft Rotation | CCWSE |
| Voltage | 115/230 |
| Full Load Amps | 16/8 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Rigid Base |
| Motor Bearings | Ball |
| Finish | Black |
| Shaft | Threaded 3/8-16 UNC-2A |
| Shaft Material | Stainless Steel |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1 |
| Shaft Dia. | 1/2 in |
| Shaft Length | 1 13/16 in |
| Ins. Class | B |
| RPM Range | 3001-3600 |
| Standards | 1563, 1795 Approvable, CSA Certified (LR43341), UL 1081, UL Recognized (E25022/46412) |
| Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
