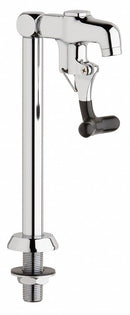

Chicago Faucets Chrome, Straight, Glass Filler, Manual Faucet Activation, 1.00 gpm - 712-ABCP

Chicago FaucetsSKU: C1913346
MPN : 712-ABCP
Weight : 3.0 lb

filler

Price:
$148.32 $180.88

Availability : Usually Ships in 3-5 Business Days

Straight-spout faucets extend straight out from the body of the faucet and have a modern, streamlined appearance. These faucets have a lever that users push a glass against to start the flow of water. When the lever is released, the flow of water stops.,Single-hole deck-mount glass fillers install into one hole on a sink or counter. They provide a narrow stream of water for filling drinking glasses or water bottles. These faucets are installed in break rooms, kitchens, bars, and similar locations.

ItemGlass Filler
Mounting Type - FaucetDeck
Faucet TypeGlass Filler
Number of Holes1
Faucet Installation StyleSingle Hole
Number of Handles1
Faucet ActivationManual
Faucet Handle TypeGlass Activated Push Lever
Faucet Handle MaterialMetal
Faucet Spout ShapeStraight
Faucet FinishChrome
Plumbing BrandChicago Faucets
Series712
Faucet Body MaterialCast Brass
Flow Rate1 gpm
Flow Outlet Type - FaucetAerated
Ligature ResistantNo
Vandal Resistant FeaturesVandal Resistant Handles
ADA ComplianceNo
StandardsAB1953, ANSI A117.1, ASME A112.181/CSA B125.1, NSF 372, NSF 61/9
CEC CompliantNon CEC Compliant
Water Inlet Connection Size1/2 in
Water Inlet Connection TypeMale NPT
IncludesMounting Hardware
Valve Type - FaucetsCold Cartridge
FeaturesMounting Hardware Included
Manufacturers Warranty LengthLifetime Warranty Metal Cast, Forged, Stamped of Formed Portion, 1 yr. Limited Finish warranty, 5 yr. Limited Cartridge Warranty
Spout Length4"
Spout Height9-3/16"
Spout Reach4"
Max. Mounting Hole CenteMax. Mounting Hole Cente
