Availability : Usually Ships in 7 Business Days

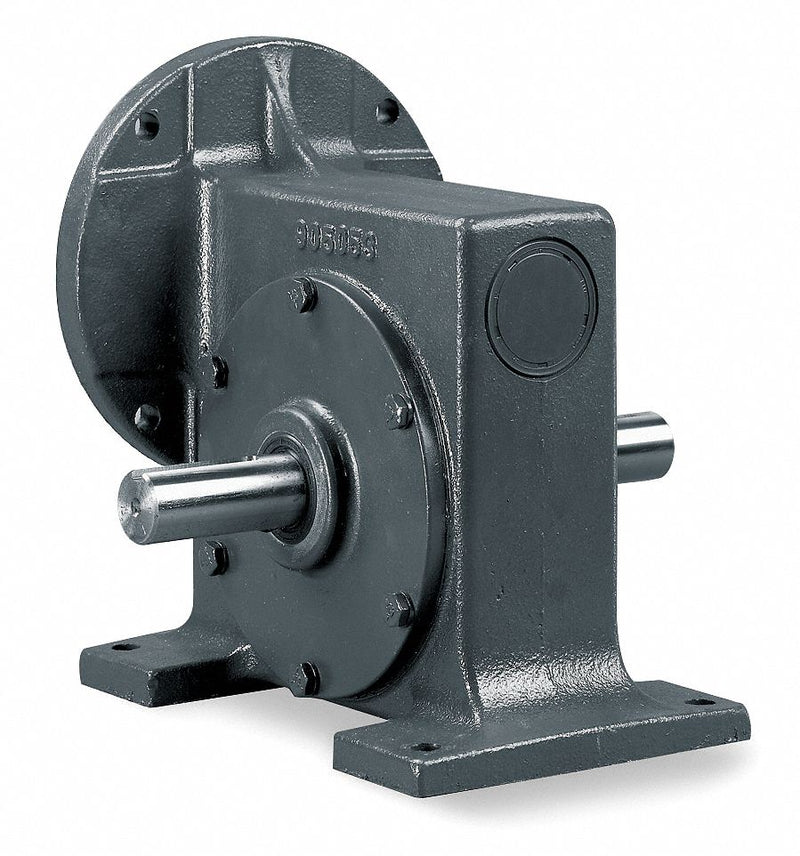

For use with NEMA 56C, 1725 rpm motors. Case-hardened, ball bearing-supported worm. High-strength bronze, tapered roller bearing-supported output gear. Double-output shaft.
Item | Speed Reducer |
Speed Reducer Type | C-Face |
Shaft Orientation | Right Angle |
Duty | Standard |
Input RPM | 1750 |
Nominal Output RPM | 35 |
Worm Center Distance | 2.62 in |
Bore Dia. | 5/8" |
Frame | 56C |
Overhung Load | 986 lb. |
Nominal Ratio | 1 |
Max. Input HP | 0.5 |
Max. Output Torque | 498 in.-lb. |
Output Torque @ 1/4 HP | 225 in-lb |
Output Torque @ 1/3 HP | 313 in-lb |
Output Torque @ 1/2 HP | 498 in-lb |
Number of Stages | 1 |
Rotation | Forward/Reversible |
Lubrication | Klubersynth UH1 6-460 |
Seal Type | Double Lip |
Bearings | Tapered Roller |
Pinion Material | Hardened Steel |
Gear Type | Worm |
Gear Material | Hardened and Ground Steel |
Worm Gear Material | Bronze |
Housing Material | Cast Iron |
Finish | Powdered Epoxy Paint |
Single/Double Output/Universal | Double Output |
Solid/Hollow Output Shaft | Solid |
Output Shaft Dia. | 1 in |
Standards | AGMA |
