Availability : Usually Ships in 7 Business Days

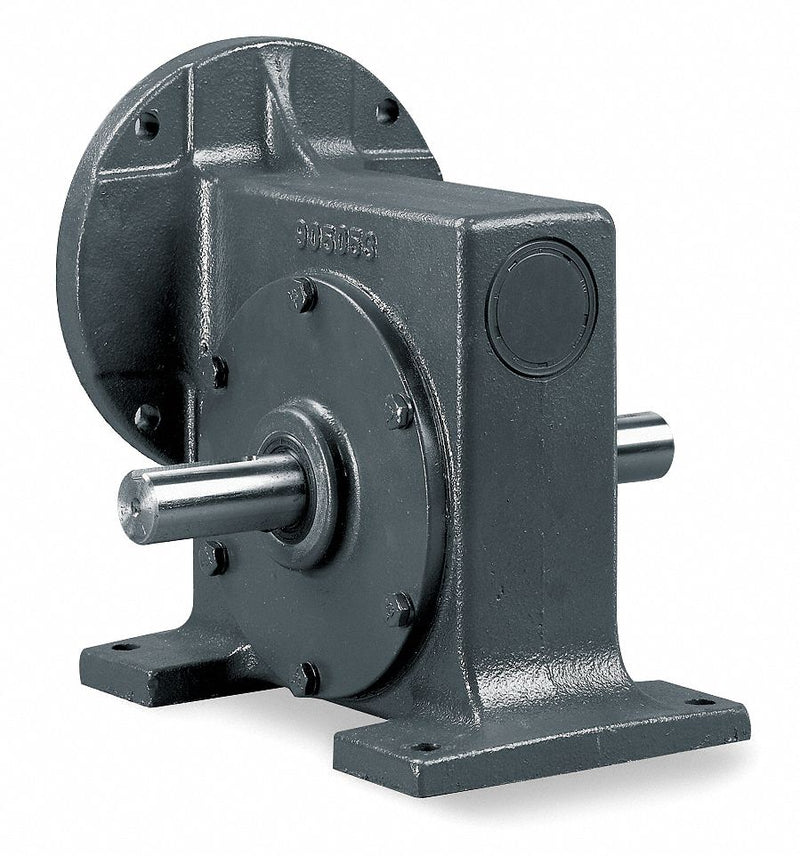

Speed Reducer; Speed Reducer Type: C-Face; Shaft Orientation: Right Angle; Duty: Standard; Input RPM: 1750; Nominal Output RPM: 69; Worm Center Distance: 2.62 in; Bore Dia.: 5/8"; Frame: 56C; Overhung Load: 679 lb.; Nominal Ratio: 25:1; Max. Input HP: 0.75; Max. Output Torque: 492 in.-lb.; Output Torque @ 1/4 HP: 140 in-lb; Output Torque @ 1/3 HP: 193 in-lb; Output Torque @ 1/2 HP: 319 in-lb; Output Torque @ 3/4 HP: 492 in-lb; Number of Stages: 1; Rotation: Forward/Reversible; Lubrication: Klubersynth UH1 6-460; Seal Type: Double Lip; Bearings: Tapered Roller; Pinion Material: Hardened Steel; Gear Type: Worm; Gear Material: Hardened and Ground Steel; Worm Gear Material: Bronze; Housing Material: Cast Iron; Finish: Powdered Epoxy Paint; Single/Double Output/Universal: Double Output; Solid/Hollow Output Shaft: Solid; Output Shaft Dia.: 1 in; Standards: AGMA
Item | Speed Reducer |
Speed Reducer Type | C-Face |
Shaft Orientation | Right Angle |
Duty | Standard |
Input RPM | 1750 |
Nominal Output RPM | 69 |
Worm Center Distance | 2.62 in |
Bore Dia. | 5/8" |
Frame | 56C |
Overhung Load | 679 lb. |
Nominal Ratio | 1 |
Max. Input HP | 0.75 |
Max. Output Torque | 492 in.-lb. |
Output Torque @ 1/4 HP | 140 in-lb |
Output Torque @ 1/3 HP | 193 in-lb |
Output Torque @ 1/2 HP | 319 in-lb |
Output Torque @ 3/4 HP | 492 in-lb |
Number of Stages | 1 |
Rotation | Forward/Reversible |
Lubrication | Klubersynth UH1 6-460 |
Seal Type | Double Lip |
Bearings | Tapered Roller |
Pinion Material | Hardened Steel |
Gear Type | Worm |
Gear Material | Hardened and Ground Steel |
Worm Gear Material | Bronze |
Housing Material | Cast Iron |
Finish | Powdered Epoxy Paint |
Single/Double Output/Universal | Double Output |
Solid/Hollow Output Shaft | Solid |
Output Shaft Dia. | 1 in |
Standards | AGMA |
