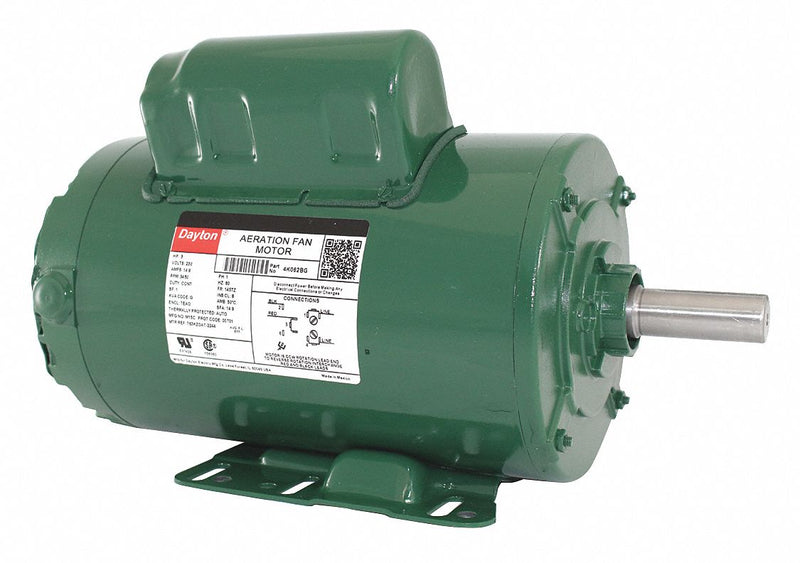

| Item - Farm Duty Motors | Aeration Fan Motor |
| Motor Application | Farm Duty |
| Motor Sub Application | Aeration Fan |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| HP | 3 |
| Nameplate RPM | 3450 |
| Frame | 145TZ |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 230 |
| Full Load Amps | 14.9 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Finish | Enamel |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1 |
| Max. Ambient Temperature | 50 Degrees C |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| Motor Shaft Design | Keyed |
| Length Less Shaft | 11 1/2 in |
| Overall Length | 13 3/4 in |
| Ins. Class | B |
| Capacitor Required | Included |
| Duty | Continuous Air Over |
| Nominal Efficiency | 79.9 % |
| Includes | 1/4-20 UNC-2B 3/4 in Deep Tapped Hole in Shaft, Gasketed Terminal Access Cover, Shaft Key |
| Standards | CSA Certified (258501), UL Recognized (E37403) |
| Item | Aeration Fan Motor |
| Voltage Compatibility | 115/230, 120/240, 230, 240 |
