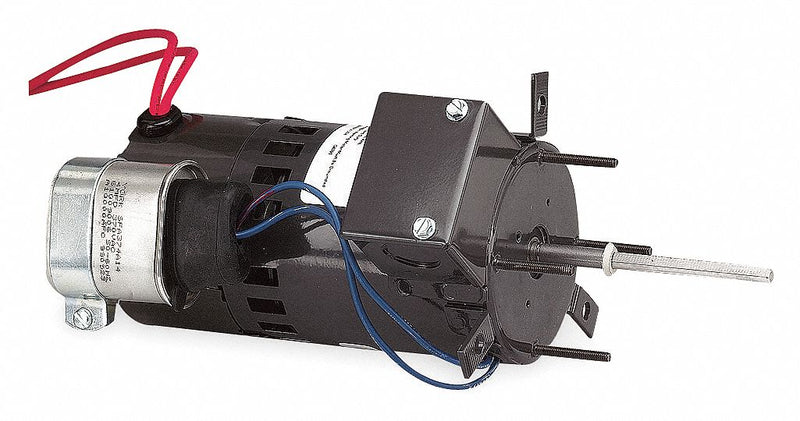

Required for most gas furnaces, this motor helps to improve energy efficiency. It has 3 holes on a 4.36" bolt circle. Auxiliary contacts of SPST centrifugal safety switch are included and rated 120VA pilot duty.
| Item | Draft Booster Motor |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air-Over |
| Duty | Continuous |
| HP | 1/9 |
| Nameplate RPM | 3000 |
| Voltage | 230 |
| Frame | Non-Standard |
| Motor Service Factor | 1 |
| Full Load Amps | 0.6 |
| Phase | 1 |
| Hz | 60/50 |
| Motor Shaft Rotation | CW/CCW |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Mounting Type | Lug |
| Mounting Pattern | C |
| Motor Bearings | Ball |
| Motor Thermal Protection | Auto |
| Body Dia. | 3.3 in |
| Shaft Dia. | 1/4 in |
| Shaft Length | 3 3/4 in |
| Contact Break | 800 RPM |
| Contact Make | 1,800 RPM |
| Includes | 5/16 in Diameter Shaft Bushing, Centrifugal Safety Switch |
| Standards | UL Recognized and CSA Certified |
| Voltage Compatibility | 115/230, 120/240, 230, 240 |
