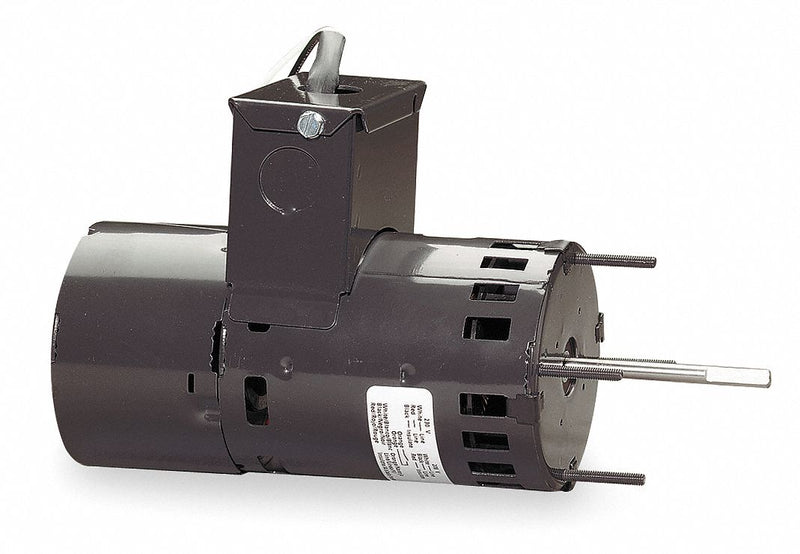

The draft booster motor is required for most gas furnaces and helps to improve energy efficiency.
| Item | Draft Booster Motor |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Open Air-Over |
| Duty | Continuous |
| HP | 1/15 |
| Nameplate RPM | 3000 |
| Voltage | 208-230 |
| Frame | Non-Standard |
| Motor Service Factor | 1 |
| Full Load Amps | 1.1-1.1 |
| Phase | 1 |
| Hz | 60 |
| Motor Shaft Rotation | CWSE |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Mounting Type | Stud |
| Mounting Pattern | B |
| Motor Bearings | Ball |
| Motor Thermal Protection | Auto |
| Body Dia. | 3.3 in |
| Shaft Dia. | 1/4 in |
| Shaft Length | 3 3/4 in |
| Contact Break | 800 RPM |
| Contact Make | 2,500 RPM |
| Includes | Centrifugal Safety Switch |
| Standards | UL Recognized and CSA Certified |
| Voltage Compatibility | 115/208-230, 208-230, 208-240 |
