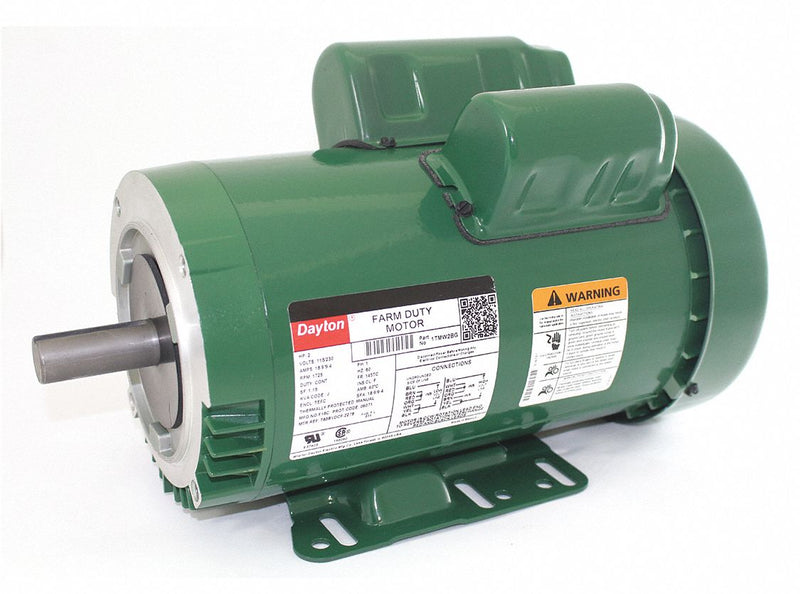

Keep conveyors, silo unloaders, barn cleaners, compressors, and manure pumps moving with this motor. It is designed to withstand harsh environments where damp and dirty conditions may exist. The totally enclosed, fan-cooled motor design helps keep the motor free of contamination. It employs a fan to blow outside over the motor to stay cool, rather than allowing outside air to freely circulate through the interior of the motor. A rubber boot over the manual protector reset button also helps seal the motor against weather and contaminants. It includes a gasketed conduit box and a capacitor cover.
| Item - Farm Duty Motors | High Torque Farm Duty Motor |
| Motor Application | Farm Duty |
| Motor Sub Application | High Torque |
| Motor Design | Capacitor-Start/Run |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 2 |
| Nameplate RPM | 1725 |
| Frame | 145TC |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 115/230 |
| Full Load Amps | 18.9/9.4 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Face/Base |
| Motor Mounting Position | Horizontal |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Finish | Enamel |
| Motor Thermal Protection | Manual |
| Motor Service Factor | 1.15 |
| Max. Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/8 in |
| Motor Shaft Design | Keyed |
| Length Less Shaft | 12 5/16 in |
| Overall Length | 14 7/16 in |
| Ins. Class | F |
| Capacitor Required | Included |
| Duty | Continuous |
| Nominal Efficiency | 81.5 % |
| Includes | Gasketed Conduit Box, Removable Base, Shaft Key, Shaft Slinger |
| Standards | CSA Certified (258501), UL Recognized (E37403) |
| Item | High Torque Farm Duty Motor |
| Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
