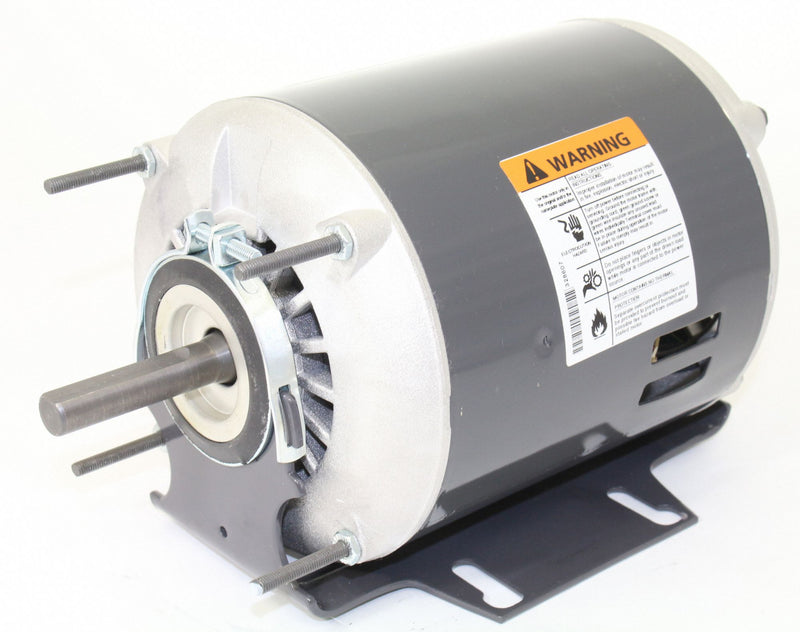

Dayton 1/4 HP, General Purpose Motor, Split-Phase, 1725 Nameplate RPM, 115 Voltage, 48Z Frame - 6XH65

DaytonSKU: C1567241
MPN : 6XH65
Weight : 13.75 lb

filler

Price:
$219.13 $353.44

Availability : Usually Ships in 12-15 Business Days

Use this motor in clean, dry, and nonhazardous applications, including fans, blowers, pumps, printing equipment, and other business machines.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor DesignSplit-Phase
Motor Enclosure DesignOpen Dripproof
HP1/4
Nameplate RPM1725
Frame48Z
Voltage115
Hz60
Phase1
Full Load Amps5.3
No. of Speeds1
Motor Mounting TypeCradle Base
Motor Thermal ProtectionNone
Ins. ClassB
Motor Service Factor1.35
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1/2 in
Shaft Length1 7/8 in
Length Less Shaft7 15/16 in
Overall Length9 13/16 in
Motor Shaft DesignFlat
StandardsCSA (156060), UL (E47479)
DutyContinuous
Motor Efficiency GroupStandard Efficient
Nominal Efficiency52 %
Manufacturers Warranty Length1 yr
