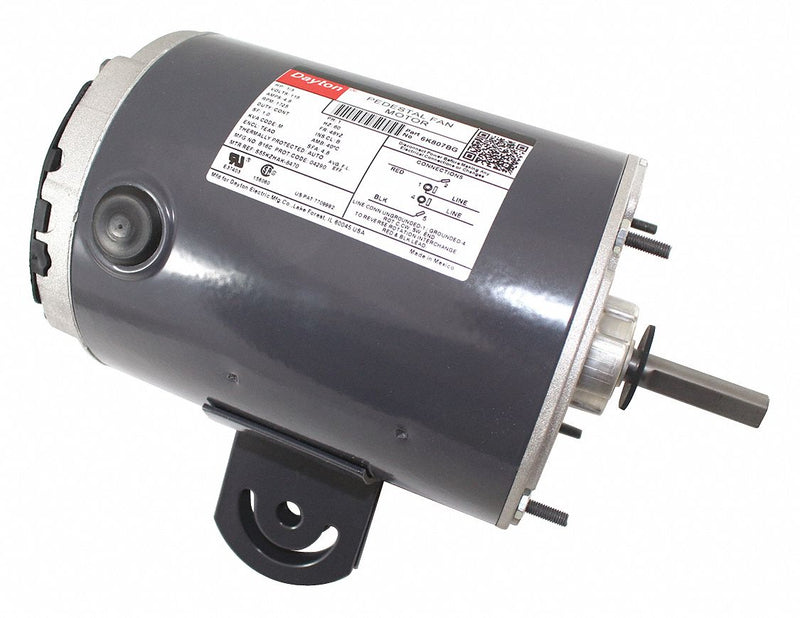

Dayton 1/3 HP Pedestal Fan Motor, Split-Phase, 1725 Nameplate RPM,115 Voltage, Frame 48YZ - 6K807

DaytonSKU: C1566647
MPN : 6K807
Weight : 17.98 lb

filler

Price:
$214.67 $346.24

Availability : Usually Ships in 3 Business Days

Designed with integral yoke bracket. Studs allow fan guard to be mounted directly to shaft endshield.

ItemPedestal Fan Motor
Motor DesignSplit-Phase
Phase1
HP1/3
No. of Speeds1
Voltage115
Motor Shaft RotationCW/CCW
Frame48YZ
Motor Enclosure DesignTotally Enclosed Air-Over
Motor Mounting TypeYoke
Shaft Dia.1/2 in
Shaft Length2 in
Motor Thermal ProtectionAuto
10 Ft. Cord and Pull Chain SwitchNo
Nameplate RPM1725
Motor ApplicationHVAC/R
Motor Sub ApplicationPedestal Fans
Full Load Amps4.8
Hz60
Motor Service Factor1
Ambient Temperature40 Degrees C
Max. Ambient Temp.40 Degrees C
Ins. ClassB
DutyContinuous
Motor BearingsBall
Body Dia.5 5/8 in
Overall Length10 1/8 in
Motor Shaft DesignFlat
ApplicationPedestal Fans
Capacitor RequiredNo
StandardsCSA Certified, UL Recognized
IncludesShaft Slinger
