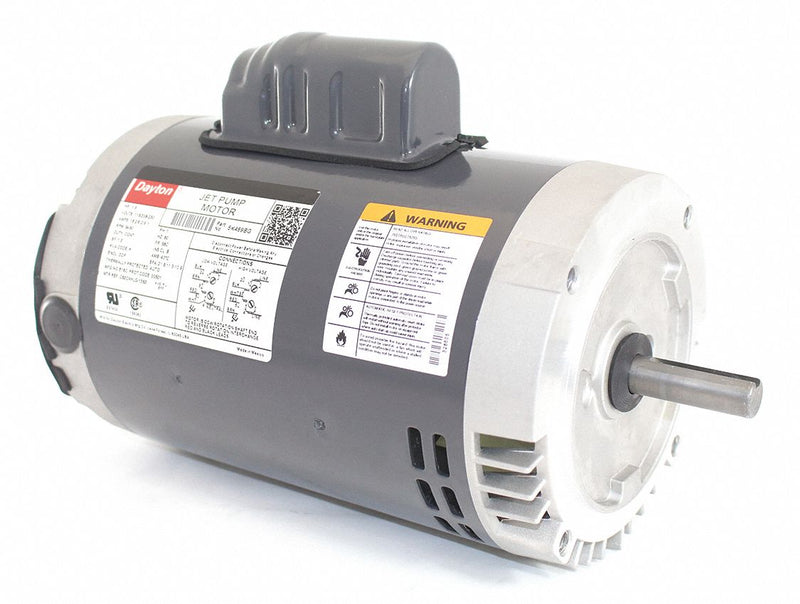

Dayton 1 1/2 HP Jet Pump Motor, Capacitor-Start, 3450 Nameplate RPM, 115/208-230 Voltage, 56C Frame - 5K469

DaytonSKU: C1563836
MPN : 5K469
Weight : 33.6 lb

filler

Price:
$440.90 $711.13

Availability : Usually Ships in 3 Business Days

This jet pump motor features a single-compartment design. The shaft slinger protects against moisture and contaminants.

ItemJet Pump Motor
Motor ApplicationPump
Motor Sub ApplicationJet Pump
Motor DesignCapacitor-Start
Motor Enclosure DesignOpen Dripproof
HP1 1/2
Nameplate RPM3450
Frame56C
Motor Shaft RotationCW/CCW
Voltage115/208-230
Full Load Amps18.2/9.2-9.1
Phase1
Hz60
Motor Mounting TypeFace
Motor Mounting PositionHorizontal or Vertical Shaft Down
Motor BearingsBall
Motor Thermal ProtectionAuto
Motor Service Factor1.3
Max. Ambient Temp.40 Degrees C
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Motor Shaft DesignKeyed
Body Dia.6 1/2 in
Ins. ClassB
Motor Efficiency GroupStandard Efficient
Nominal Efficiency72.8 %
IncludesDripcover Kit for Vertical Mounting, Shaft Key, Water Slinger
StandardsCSA Certified (258501), UL Recognized (E37403)
Voltage Compatibility115, 115/208-230, 115/230, 120, 120/240, 208, 208-230, 208-240, 230, 240
