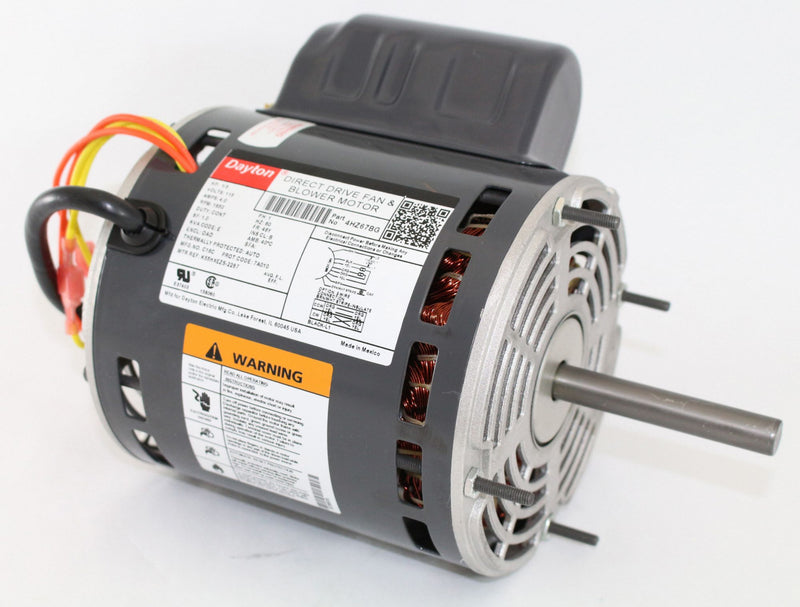

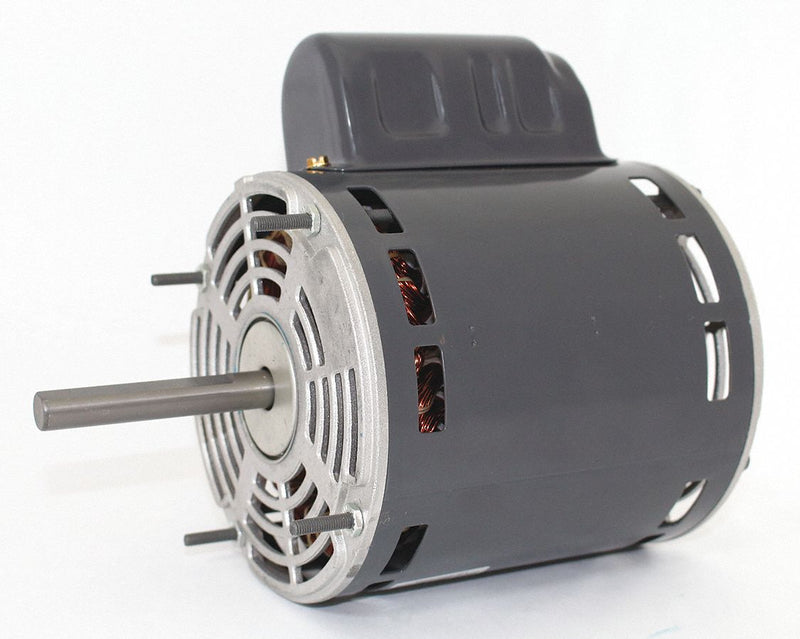

Permanent split capacitor motors include capacitor; designed specifically as replacement motors for Dayton ventilators.
| Item | Direct Drive Blower Motor |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air-Over |
| HP | 1/3 |
| Nameplate RPM | 1650 |
| Voltage | 115 |
| Full Load Amps | 4 |
| Hz | 60 |
| Phase | 1 |
| Frame | 48Y |
| Motor Service Factor | 1 |
| Max. Ambient Temp. | 40 Degrees C |
| Ins. Class | B |
| Duty | Continuous |
| No. of Speeds | 1 |
| Motor Mounting Type | Stud |
| Motor Mounting Position | All Angle |
| Motor Bearings | Ball |
| Motor Thermal Protection | Auto |
| Motor Shaft Rotation | CW/CCW |
| Replacement For | Mfr. No. 4HZ23, 4HZ41, 4HZ43 |
| Length Less Shaft | 6 in |
| Shaft Dia. | 1/2 in |
| Shaft Length | 3 in |
| Motor Shaft Design | Flat |
| Capacitor Required | Included |
| Standards | CSA Certified, UL Recognized |
| Application | 4HZ41, 4HZ43, Mfr. No. 4HZ23 |
| Voltage Compatibility | 115, 120 |
