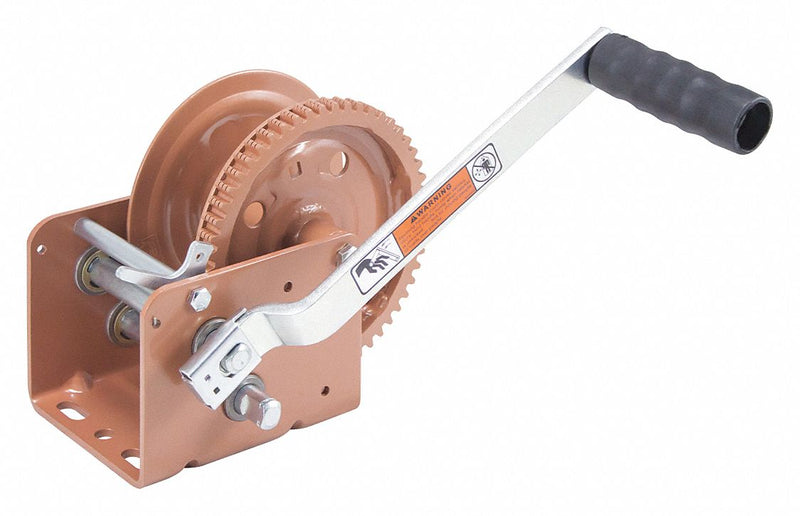

Dutton-Lainson 6 7/8 inH Pulling Hand Winch with 1,800 lb 1st Layer Load Capacity; Brake Included: No - DL1800A
filler
Availability : Usually Ships in 1-3 Business Days
The DUTTON-LAINSON hand winch with ratchet features a corrosion-resistant frame, with a rubberized handle grip for added comfort and easy pulling. Designed for applications where it may be necessary to pull the line freely from the winch. Manual ratchet locks the load in position; winch will freewheel with the ratchet released. Not recommended for lifting applications., Spur gear ,Winch cable sold separately
| Item | Hand Winch |
| Winch Gear Type | Spur |
| Winch Type | Pulling |
| 1st Layer Load Capacity | 1,800 lb |
| Winch Gear Ratio | 1 |
| Brake Included | No |
| Overall Length | 8 1/8 in |
| Overall Width | 6 1/2 in |
| Overall Height | 6 7/8 in |
| Drum Capacity for 3/16 In. Cable | 130 ft |
| Drum Capacity for 1/4 In. Cable | 70 ft |
| Drum Capacity for 7/32 In. Cable | 97 ft |
| Drum Capacity for 5/16 In. Cable | 47 ft |
| Drum Capacity for 2 In. Strap | 38 ft |
| Frame Material | Steel |
| Frame Color | Bronze |
| Frame Finish | Powder Coated |
| Handle Length | 9 1/2 in |
| Standards | SAE J1853 |
| Includes | Handle with Molded Hand Grip |
| Manufacturers Warranty Length | 5 yr |
