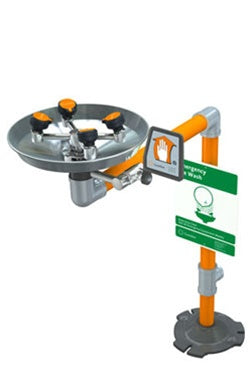

APPLICATION: Handicapped accessible, free standing, pedestal mounted WideArea eye/face wash. Bowl is lowered and extended to permit access by wheelchair user. Profile of unit is ?flattened? to comply with maximum height and knee clearance requirements.
ADA COMPLIANCE: Unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach, minimum knee clearance and distance from obstructions).
SPRAY HEAD ASSEMBLY: Four GS-Plus spray heads. Each head has a ?flip top? dust cover, internal flow control and filter to remove impurities from the water flow.
VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals.
BOWL: 11 1/2" diameter stainless steel.
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers on piping for high visibility and corrosion resistance.
SUPPLY: 1/2" NPT female inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
ADA COMPLIANCE: Unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach, minimum knee clearance and distance from obstructions).
SPRAY HEAD ASSEMBLY: Four GS-Plus spray heads. Each head has a ?flip top? dust cover, internal flow control and filter to remove impurities from the water flow.
VALVE: 1/2" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon® seals.
BOWL: 11 1/2" diameter stainless steel.
PIPE AND FITTINGS: Schedule 40 galvanized steel. Furnished with orange polyethylene covers on piping for high visibility and corrosion resistance.
SUPPLY: 1/2" NPT female inlet.
WASTE: 1 1/4" NPT female outlet.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Valve and spray head assemblies are factory assembled and water tested prior to shipment.
| Item | Barrier Free Eyewash |
| Sprayhead | Eye/Facewash |
| Mounting | Floor Mount |
| Eyewash Bowl Material | Stainless Steel |
