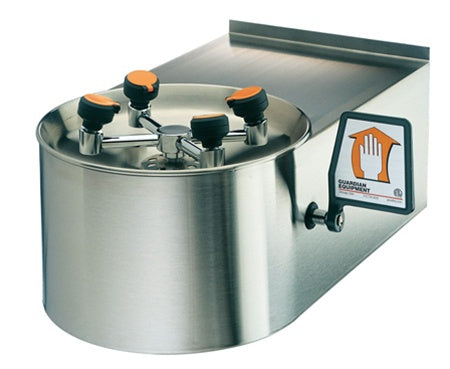

APPLICATION: Handicapped accessible WideArea eye/face wash for wall mounting. Bowl is lowered and extended to permit access by wheelchair user. Profile of unit is ?flattened? to comply with maximum height and knee clearance requirements. Unit has stainless steel bowl and wraparound skirt to conceal valve, drain and piping.
ADA COMPLIANCE: When installed at recommended mounting height, unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach, minimum knee clearance and distance from obstructions).
SPRAY HEAD ASSEMBLY: Four GS-Plus spray heads. Each head has a ?flip top? dust cover, internal flow control and filter to remove impurities from the water flow.
VALVE: 1/2" IPS brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
BOWL: 11 1/2" stainless steel with wraparound skirt.
MOUNTING: Bowl and skirt unit has welded stainless steel bracket for wall mounting.
SUPPLY: 1/2" NPT female inlet.
WASTE: 1 1/2" OD chrome plated brass tailpiece.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Unit is completely assembled and water tested prior to shipment.
ADA COMPLIANCE: When installed at recommended mounting height, unit complies with ADA requirements for accessibility by handicapped persons (maximum height and reach, minimum knee clearance and distance from obstructions).
SPRAY HEAD ASSEMBLY: Four GS-Plus spray heads. Each head has a ?flip top? dust cover, internal flow control and filter to remove impurities from the water flow.
VALVE: 1/2" IPS brass stay-open ball valve. Valve is US-made with chrome plated brass ball and Teflon seals.
BOWL: 11 1/2" stainless steel with wraparound skirt.
MOUNTING: Bowl and skirt unit has welded stainless steel bracket for wall mounting.
SUPPLY: 1/2" NPT female inlet.
WASTE: 1 1/2" OD chrome plated brass tailpiece.
SIGN: ANSI-compliant identification sign.
QUALITY ASSURANCE: Unit is completely assembled and water tested prior to shipment.
| Item | Barrier Free Eyewash |
| Sprayhead | Eye/Facewash |
| Mounting | Wall Mount |
| Eyewash Bowl Material | Stainless Steel |
