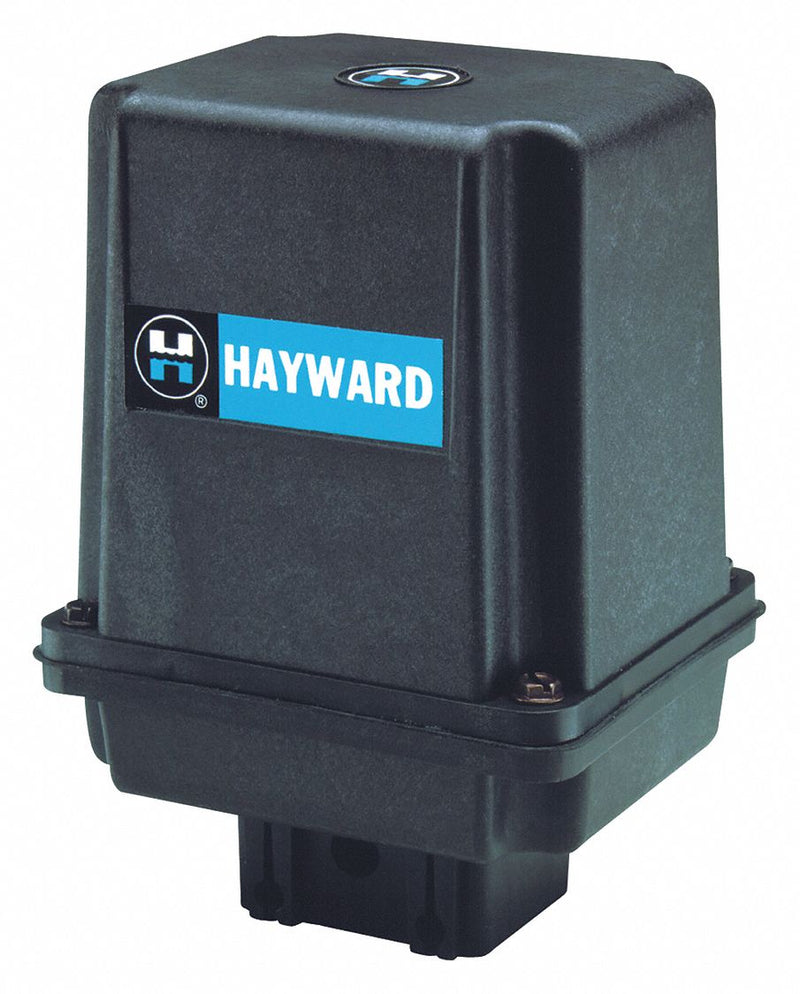

Open/close style actuator is for use in applications with Hayward ball valves only.
| Item | Electric Ball Valve Actuator |
| Voltage | 115V AC |
| Signal Type | On-Off |
| Torque | 140 in-lb |
| Cycle Time | 2.5 sec |
| Ambient Temp. Range | 40 Degrees to 140 Degrees F |
| Type of Actuator | Non-Spring Return |
| Body Material | Thermoplastic |
| Stroke Deg. | 90 |
| Height | 7 in |
| Width | 5 in |
| Depth | 5 in |
| Auxiliary Switch Type | 1 SPDT |
| Electrical Connections | Cable |
| Enclosure Rating | NEMA 4/4x |
| Mounting | Non ISO |
| For Use With | Hayward Ball Valves |
