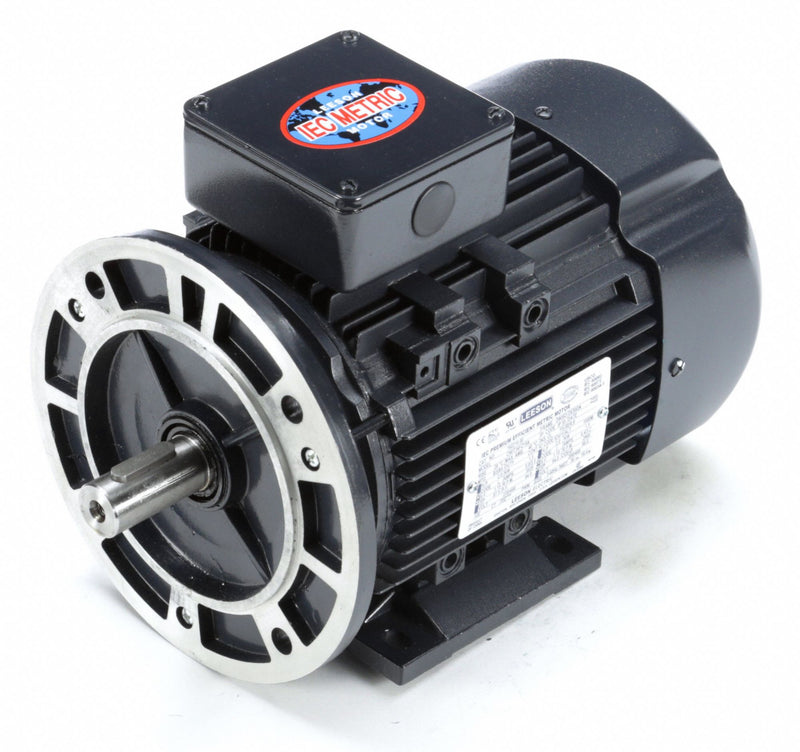

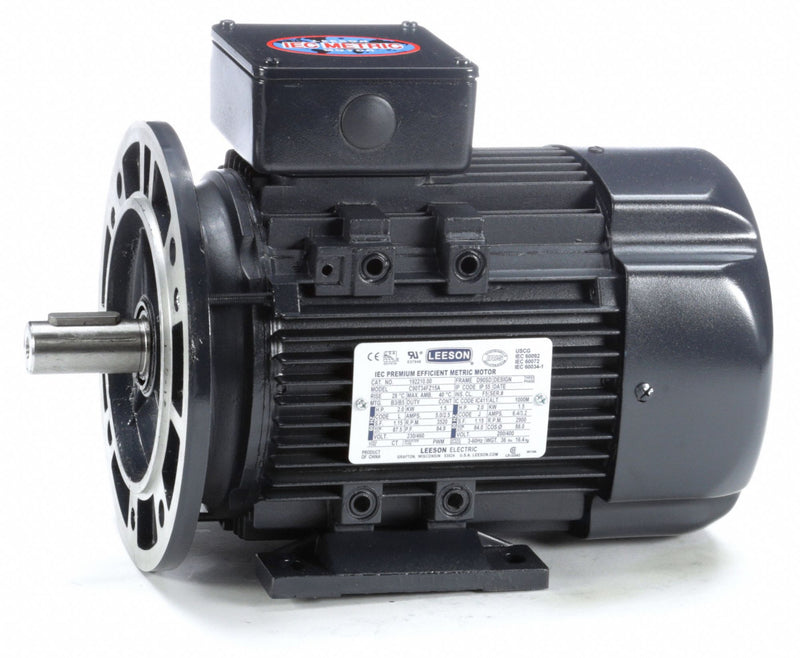

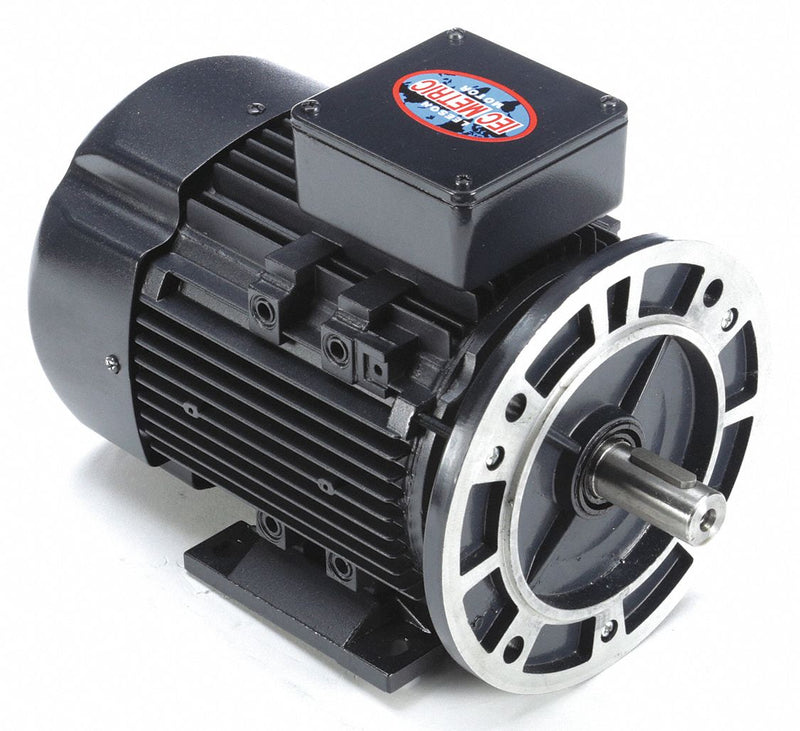

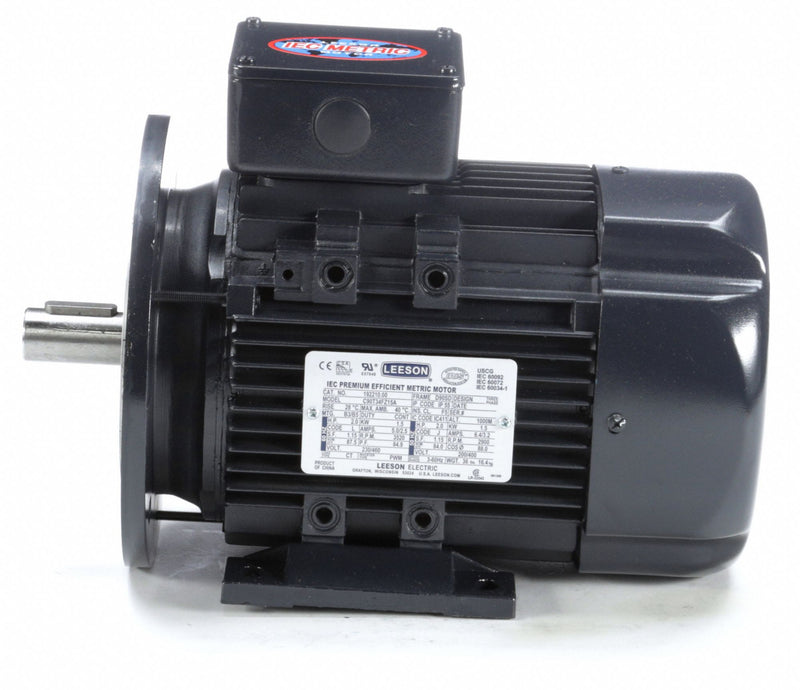

Leeson 2 HP Metric Motor,3-Phase,3455 Nameplate RPM,230/460 Voltage,Frame D90SD - 192210

LeesonSKU: C1541573
MPN : 192210
Weight : 38.73 lb

filler

Price:
$992.63 $1,210.52

Availability : Usually Ships in 1-3 Business Days

Steel fan cover and low-noise fan maximize airflow efficiency. Inverter-Rated Insulation System (IRIS) provides protection against voltage spikes induced by variable frequency drives. V-seals on both drive end and nondrive end. Multimount repositionable feet allow 3 conduit box positions. Terminal boards included. Suitable as replacement motors for machine tools, textile machinery, and other equipment with metric dimensions.

ItemMetric Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP2
kW1.49
Nameplate RPM3455
FrameD90SD
Voltage230/460
Hz60/50
Phase3
Full Load Amps5/2.5
Motor Mounting TypeFace/Base
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialCast Aluminum
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.24 mm
Shaft Length50 mm
Motor Efficiency GroupNEMA Premium Efficient
Nominal Efficiency85.5 %
CC NumberCC005A
DutyContinuous
StandardsCE, CSA (LR33543), UL (E57948)
IncludesMulti-Mount Repositionable Feet to Allow for 3 Conduit Box Positions, Terminal Board
Voltage Compatibility208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
Green Certification or Other RecognitionNEMA Premium(R) Rated
