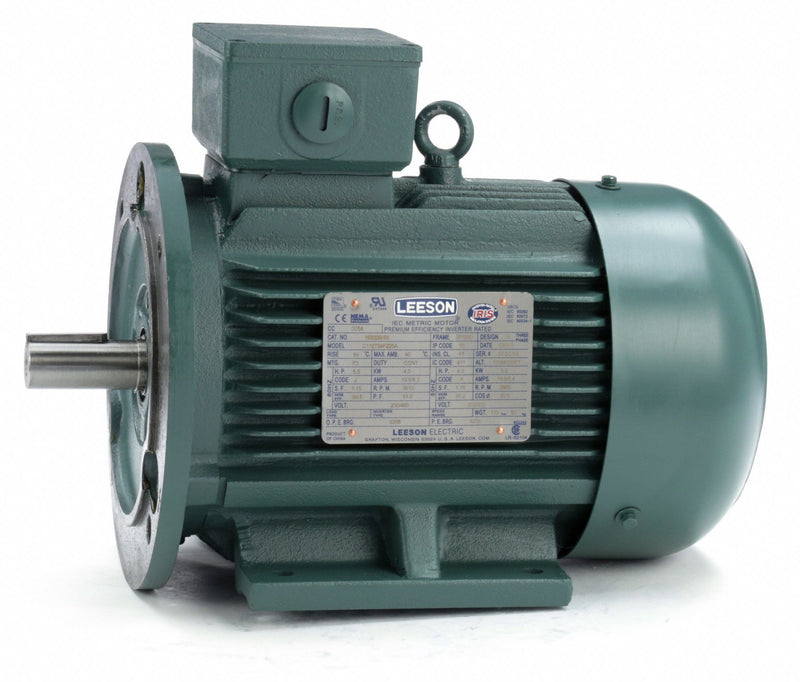

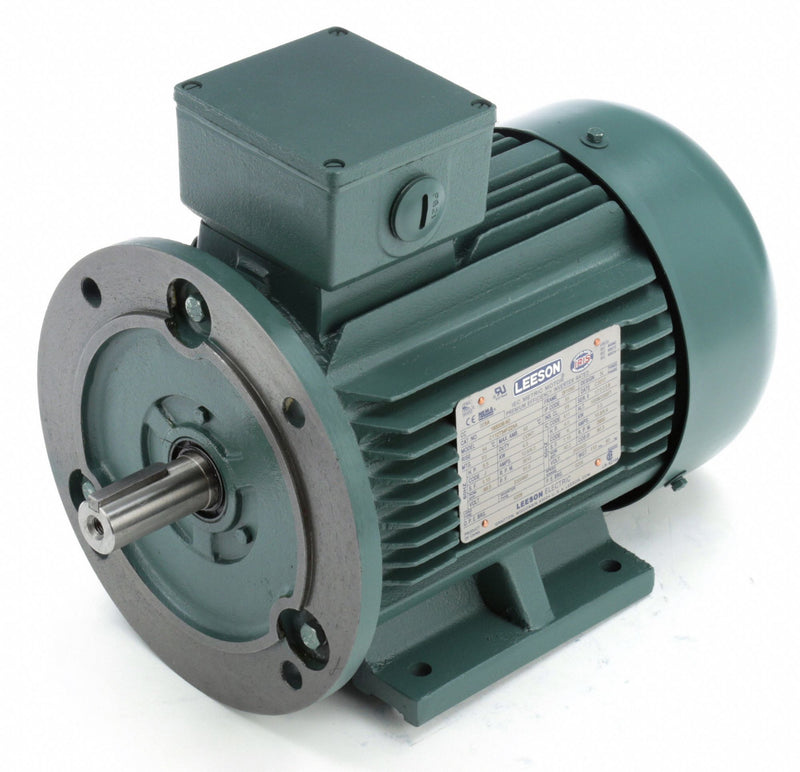

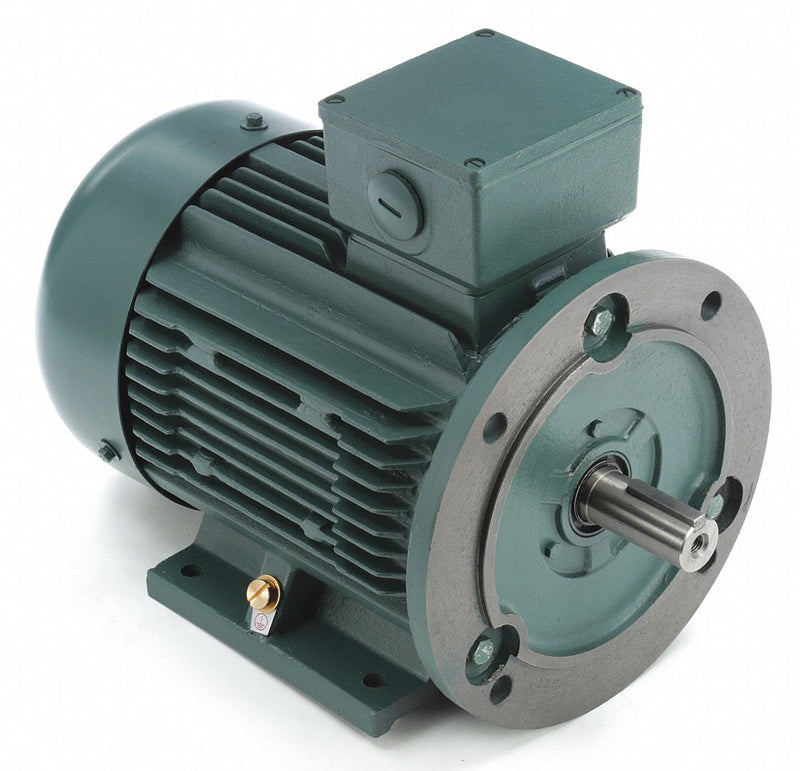

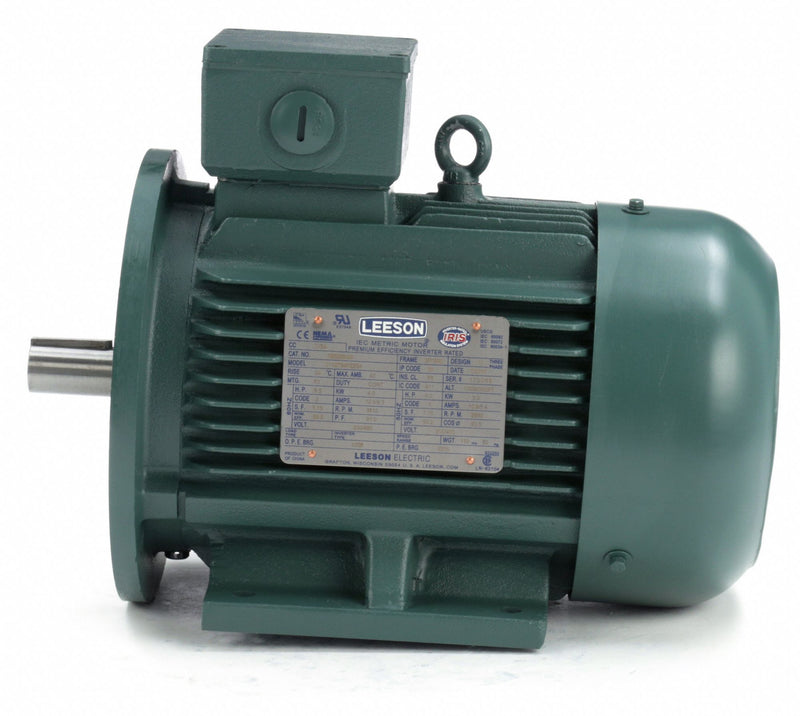

Steel fan cover and low-noise fan maximize airflow efficiency. Inverter-Rated Insulation System (IRIS) provides protection against voltage spikes induced by variable frequency drives. V-seals on both drive end and nondrive end. Terminal boards included. Suitable as replacement motors for machine tools, textile machinery, and other equipment with metric dimensions.
| Item | Premium Efficiency Metric Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 5 1/2 |
| kW | 4.1 |
| Nameplate RPM | 3510 |
| Frame | DF112MD |
| Voltage | 230/460 |
| Hz | 60/50 |
| Phase | 3 |
| Full Load Amps | 12.6/6.3 |
| Motor Mounting Type | Face/Base |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 28 mm |
| Shaft Length | 60 mm |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 88.5 % |
| CC Number | CC005A |
| Duty | Continuous |
| Standards | CE, CSA (LR62104), IEC and NEMA, UL (E57948) |
| Voltage Compatibility | 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460 |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
