Availability : Usually Ships in 1-3 Business Days

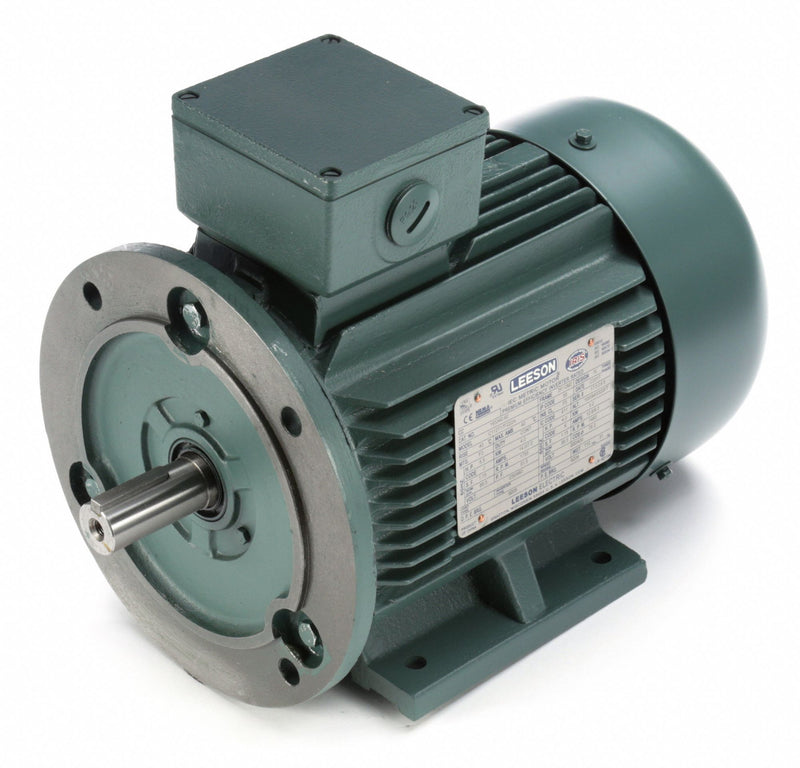

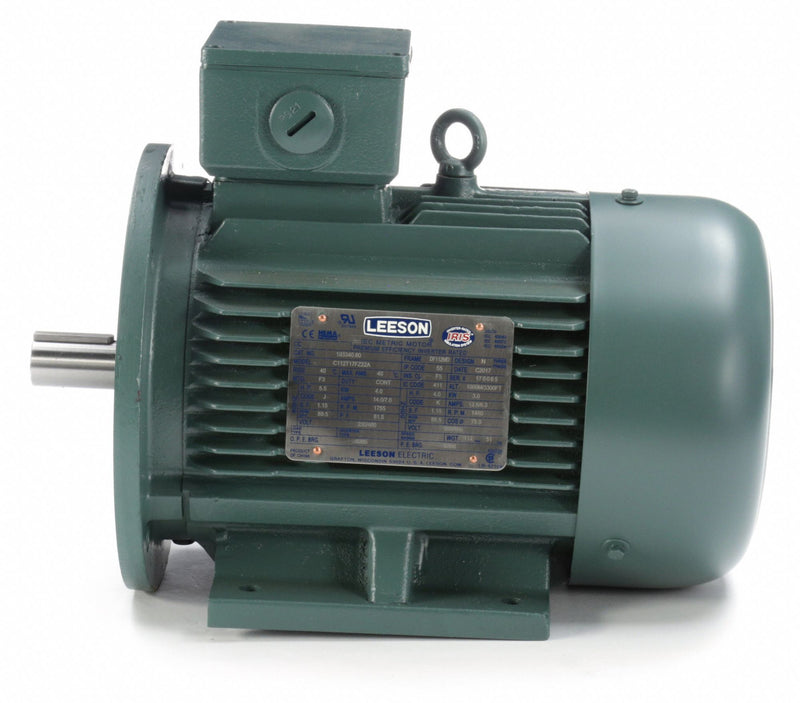

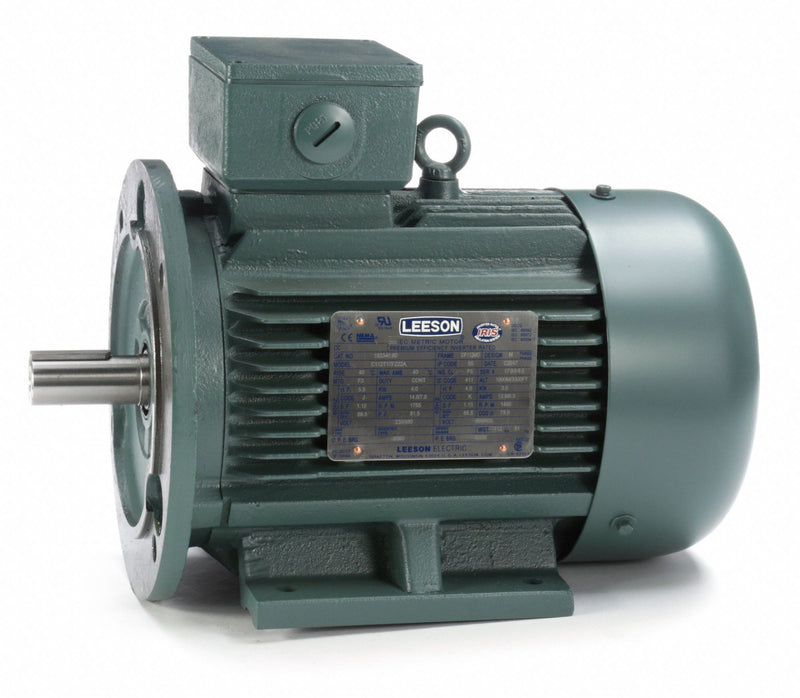

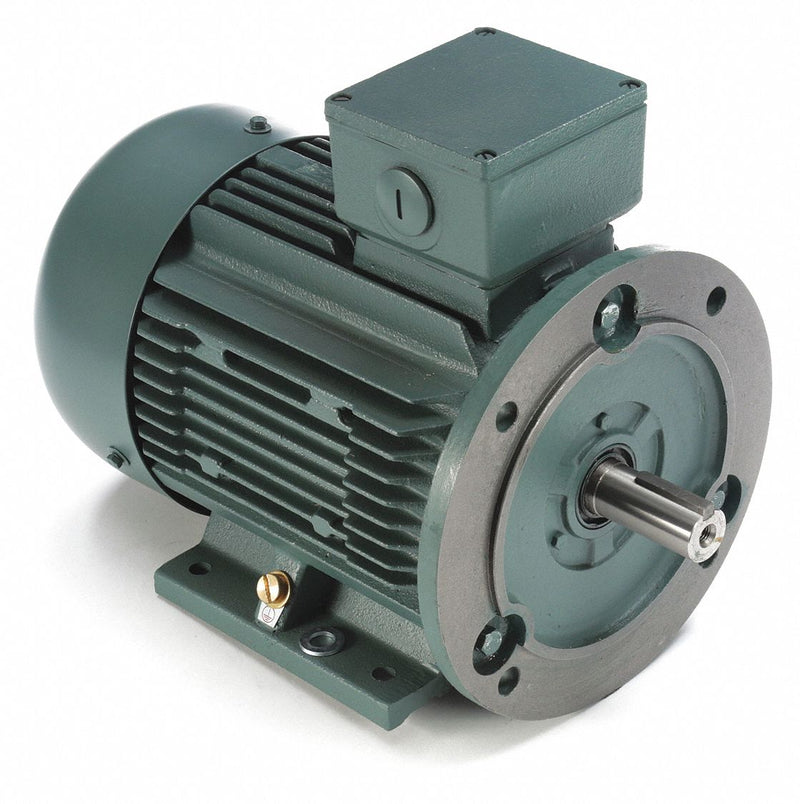

Steel fan cover and low-noise fan maximize airflow efficiency. Inverter-Rated Insulation System (IRIS) provides protection against voltage spikes induced by variable frequency drives. V-seals on both drive end and nondrive end. Terminal boards included. Suitable as replacement motors for machine tools, textile machinery, and other equipment with metric dimensions.
Item | Premium Efficiency Metric Motor |
Motor Application | General Application |
Motor Design | 3-Phase |
Motor Enclosure Design | Totally Enclosed Fan-Cooled |
HP | 5 1/2 |
kW | 4.1 |
Nameplate RPM | 1755 |
Frame | DF112MD |
Voltage | 230/460 |
Hz | 60/50 |
Phase | 3 |
Full Load Amps | 14/7 |
Motor Mounting Type | Face/Base |
Motor Thermal Protection | None |
Ins. Class | F |
Motor Service Factor | 1.15 |
Motor Bearings | Ball |
Motor Frame Material | Cast Iron |
Max. Ambient Temp. | 40 Degrees C |
Motor Shaft Rotation | CW/CCW |
Shaft Dia. | 28 mm |
Shaft Length | 60 mm |
Motor Efficiency Group | NEMA Premium Efficient |
Nominal Efficiency | 89.5 % |
CC Number | CC005A |
Duty | Continuous |
Standards | CE, CSA (LR62104), IEC and NEMA, UL (E57948) |
Voltage Compatibility | 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460 |
Green Certification or Other Recognition | NEMA Premium(R) Rated |
