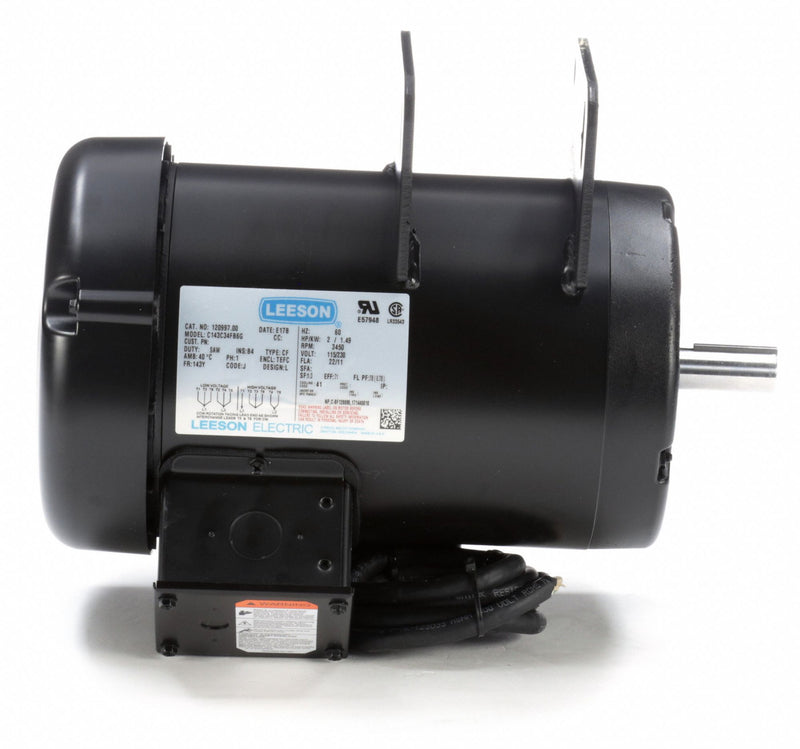

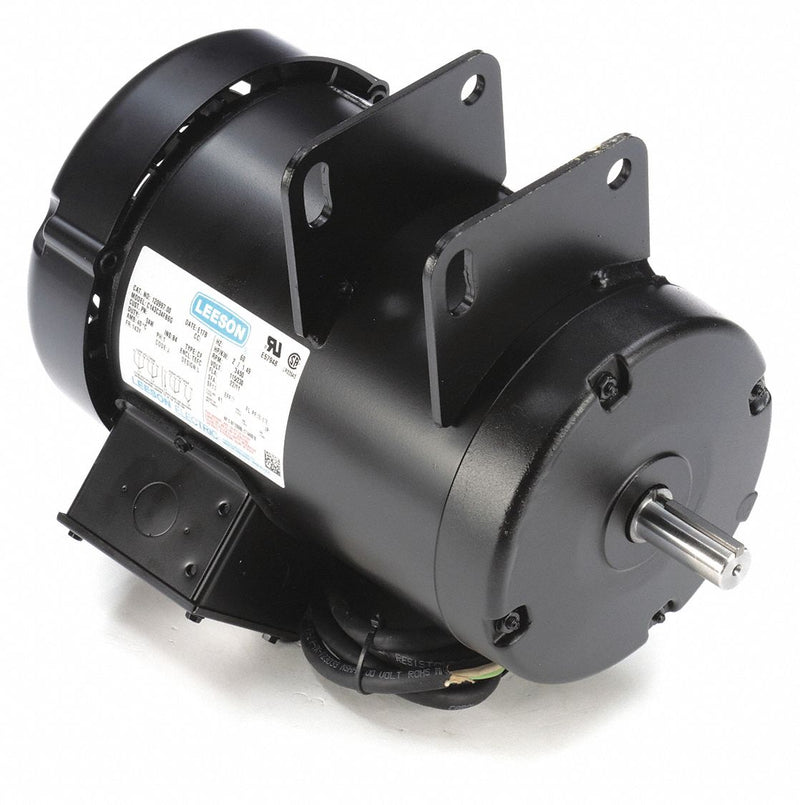

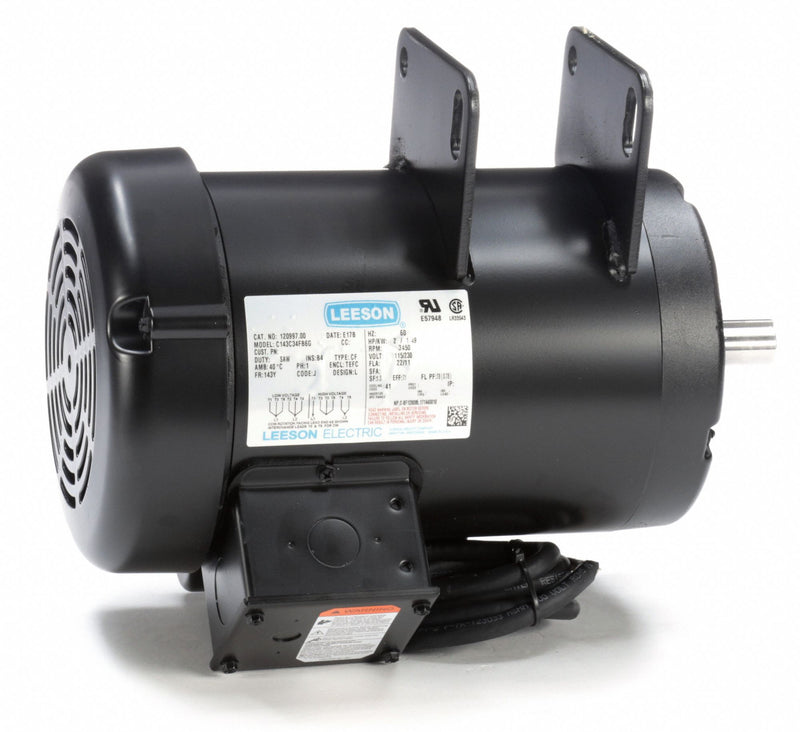

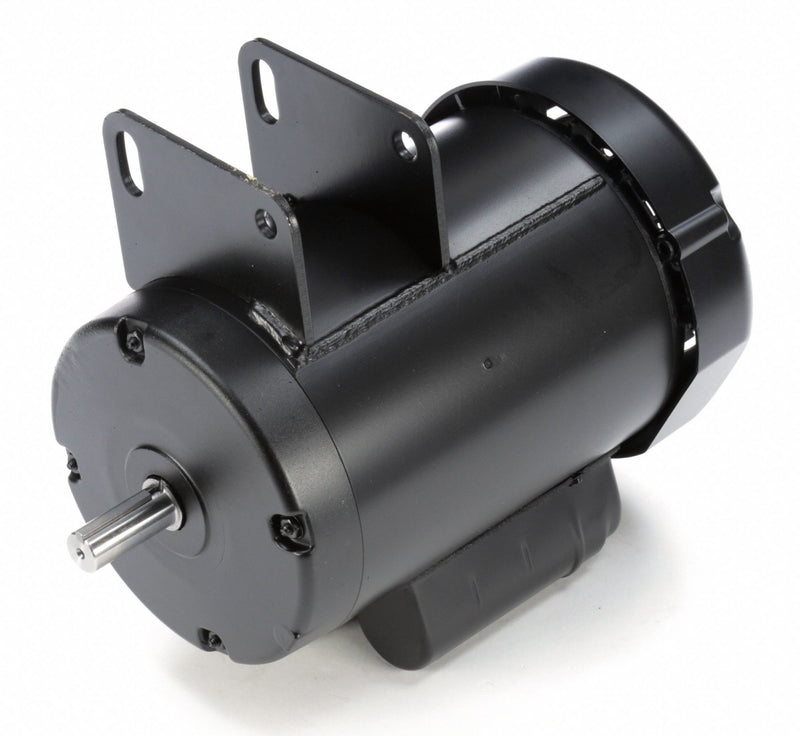

Table saw motor is designed to work woodworking equipment like table saws, lathes, and planers. Totally enclosed design helps prevent motors problems caused by wood shavings and dust.
| Item | Table Saw Motor |
| Motor Application | Power Tool |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 2 |
| Nameplate RPM | 3450 |
| Frame | 143Y |
| Voltage | 115/230 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 22/11 |
| Motor Mounting Type | Rigid Base |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Ambient Temperature | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Length Less Shaft | 11 1/16 in |
| Shaft Dia. | 3/4 in |
| Shaft Length | 1 13/16 in |
| Standards | CSA Certified (LR33543), UL Recognized (E57948) |
| Includes | 50 in Long 14/3 Power Cord Less Plug |
| RPM Range | 3001-3600 |
| Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
