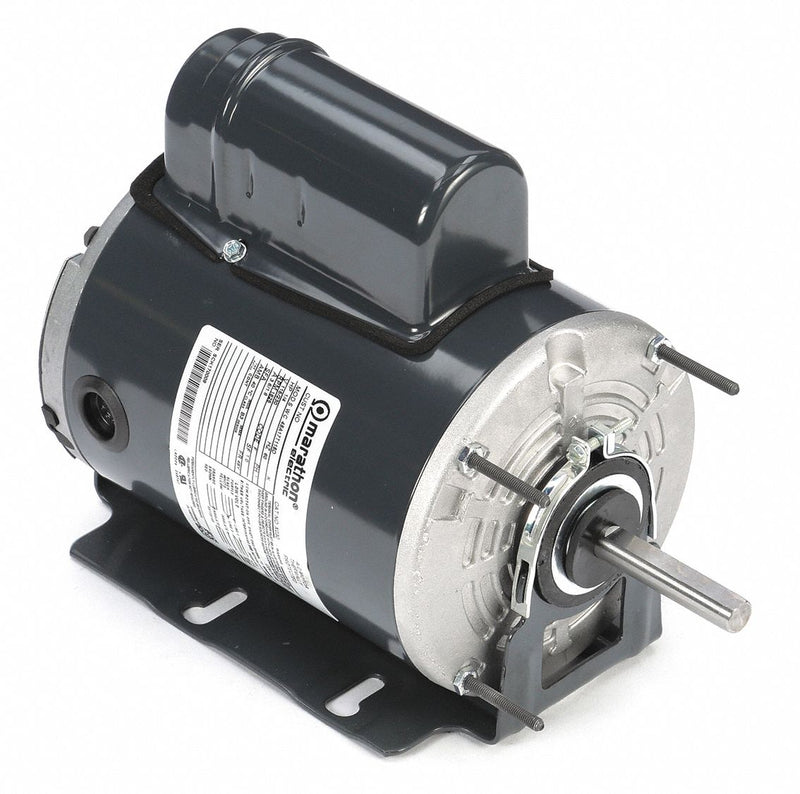

| Item - Farm Duty Motors | Agricultural Fan Motor |
| Motor Application | Farm Duty |
| Motor Sub Application | Poultry/Livestock Direct Drive Fan |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| HP | 1/4 |
| Nameplate RPM | 1625 |
| Frame | 48Y |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 115/230 |
| Full Load Amps | 3.6/1.8 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Cradle Base |
| Motor Mounting Position | All Angle |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1 |
| Shaft Dia. | 1/2 in |
| Shaft Length | 2 9/16 in |
| Length Less Shaft | 8 1/2 in |
| Overall Length | 11 1/16 in |
| Ins. Class | B |
| Duty | Continuous |
| Nominal Efficiency | 68 % |
| Standards | CSA Certified, UL Recognized |
| Item | Agricultural Fan Motor |
| Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
