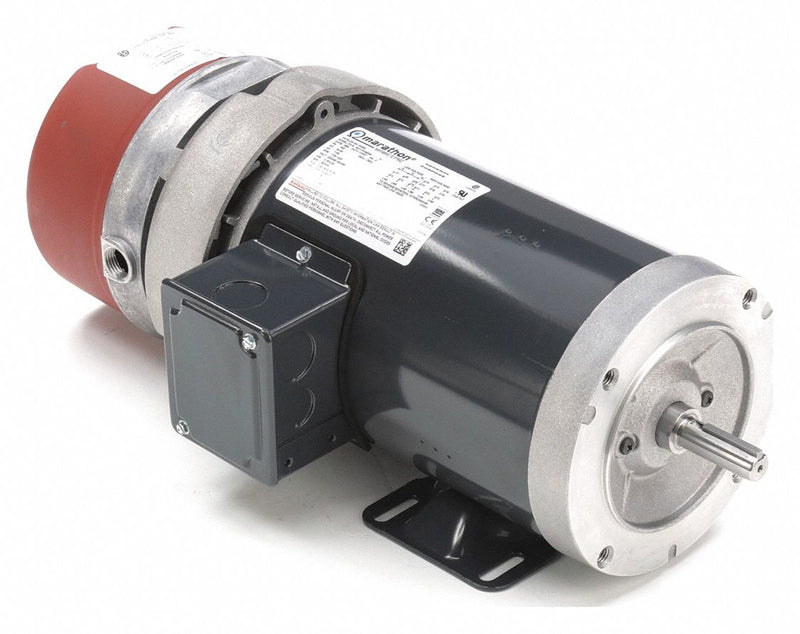

Brake Motor; Motor Application: Brake Motor; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 1; Nameplate RPM: 1725; Frame: 56C; Voltage: 230/460; Hz: 60/50; Phase: 3; Full Load Amps: 3.3/1.6; Motor Mounting Type: Face/Base; Brake Rating: 6 ft-lb; Motor Thermal Protection: None; Ins. Class: B; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Frame Material: Rolled Steel; Ambient Temperature: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 5/8 in; Shaft Length: 1 7/8 in; Length Less Shaft: 16 15/16 in; Nominal Efficiency: 88.5 %; Motor Efficiency Group: NEMA Premium Efficient; CC Number: CC003A; RPM Range: 1701-1800; Voltage Compatibility: 220-230/460, 230/460, 460; Green Certification or Other Recognition: NEMA Premium(R) Rated
| Item | Brake Motor |
| Motor Application | Brake Motor |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1 |
| Nameplate RPM | 1725 |
| Frame | 56C |
| Voltage | 230/460 |
| Hz | 60/50 |
| Phase | 3 |
| Full Load Amps | 3.3/1.6 |
| Motor Mounting Type | Face/Base |
| Brake Rating | 6 ft-lb |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Ambient Temperature | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 16 15/16 in |
| Nominal Efficiency | 88.5 % |
| Motor Efficiency Group | NEMA Premium Efficient |
| CC Number | CC003A |
| RPM Range | 1701-1800 |
| Voltage Compatibility | 220-230/460, 230/460, 460 |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
