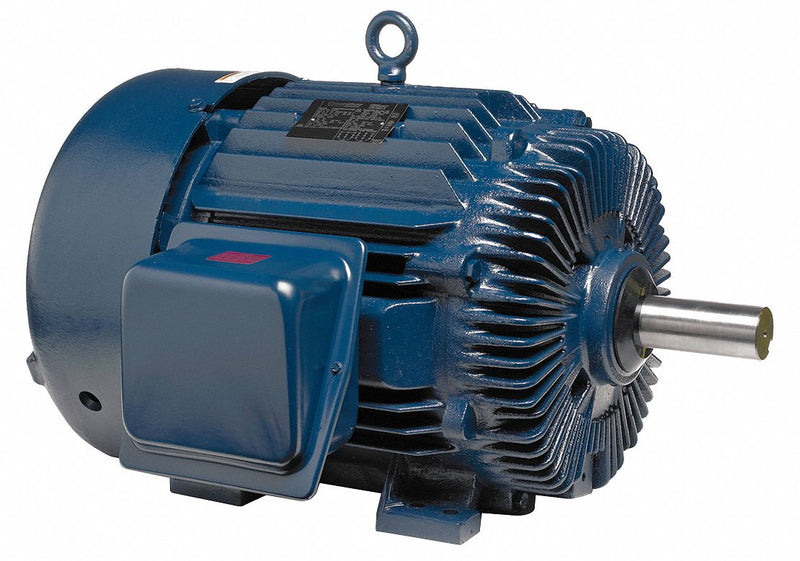

| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 20 |
| Nameplate RPM | 880 |
| Frame | 326T |
| Voltage | 230/460 |
| Hz | 60/50 |
| Phase | 3 |
| Full Load Amps | 59/29.5 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 2 1/8 in |
| Shaft Length | 5 1/4 in |
| Length Less Shaft | 25 1/8 in |
| Overall Length | 30 3/8 in |
| Motor Shaft Design | Keyed |
| Standards | CE Approved, CSA (LR2025), UL (E49747) |
| Duty | Continuous |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 95.4 % |
| CC Number | CC003A |
| Inverter Rated | No |
| Manufacturers Warranty Length | 1 yr |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
