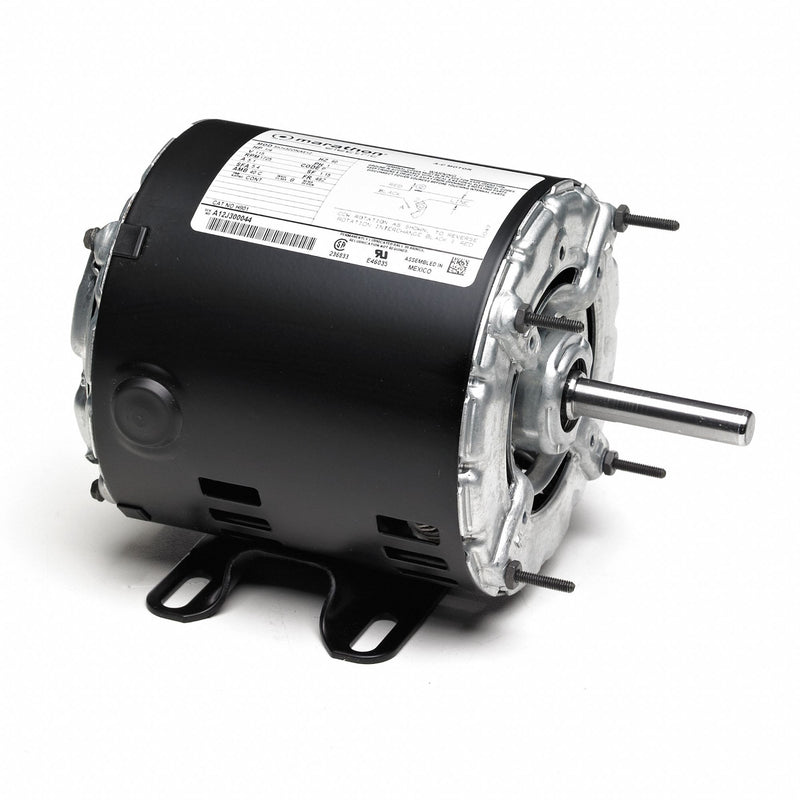

| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| HP | 3/4 |
| Nameplate RPM | 1725 |
| Frame | 56Z |
| Voltage | 115 |
| Hz | 60 |
| Phase | 1 |
| Full Load Amps | 11.2 |
| No. of Speeds | 1 |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Motor Frame Material | Rolled Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 1/4 in |
| Length Less Shaft | 9 1/16 in |
| Overall Length | 11 5/16 in |
| Motor Shaft Design | Keyed |
| Standards | CSA (MC236833), UL (E14133) |
| Duty | Continuous |
| Motor Efficiency Group | Standard Efficient |
| Nominal Efficiency | 66 % |
| Inverter Rated | No |
| Manufacturers Warranty Length | 1 yr |
