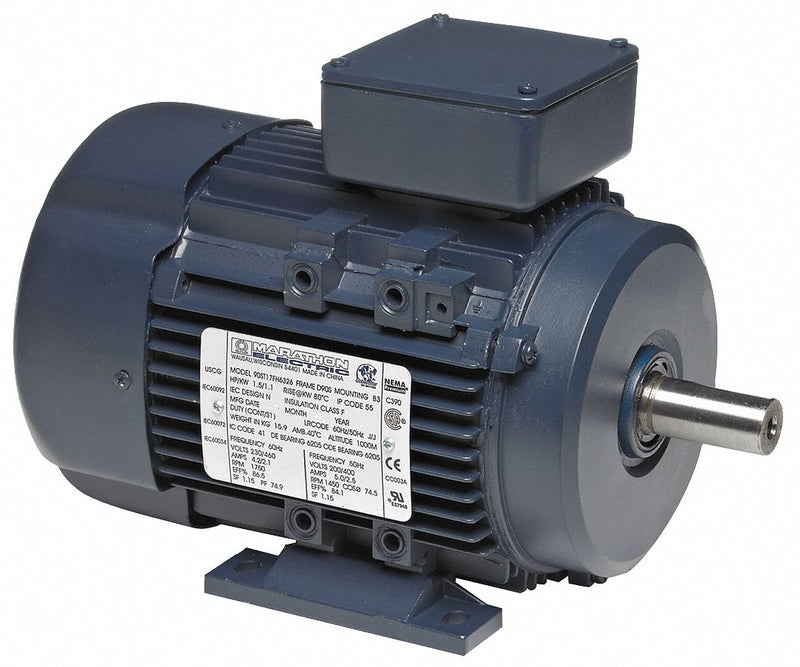

Metric Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 1/2; kW: 0.37; Nameplate RPM: 1695; Frame: 71M; Voltage: 575; Hz: 60; Phase: 3; Full Load Amps: 0.74; Motor Mounting Type: Rigid Base; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Frame Material: Cast Aluminum; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 14 mm; Shaft Length: 45 mm; Motor Efficiency Group: Energy Efficient; Nominal Efficiency: 74 %; Duty: Continuous; Standards: CE Certified, CSA Certified, UL Recognized; Voltage Compatibility: 575
| Item | Metric Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1/2 |
| kW | 0.37 |
| Nameplate RPM | 1695 |
| Frame | 71M |
| Voltage | 575 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 0.74 |
| Motor Mounting Type | Rigid Base |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Aluminum |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 14 mm |
| Shaft Length | 45 mm |
| Motor Efficiency Group | Energy Efficient |
| Nominal Efficiency | 74 % |
| Duty | Continuous |
| Standards | CE Certified, CSA Certified, UL Recognized |
| Voltage Compatibility | 575 |
