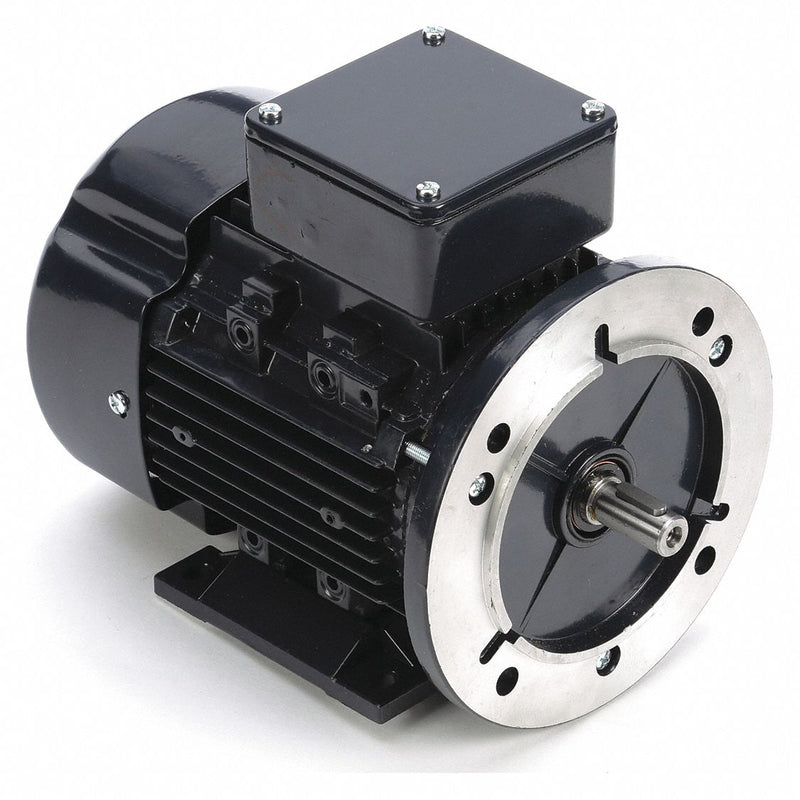

Marathon Motors 1/2 HP Metric Motor,3-Phase,1695 Nameplate RPM,230/460 Voltage,Frame 71 - 071T17FH5508

MarathonSKU: C2792574
MPN : 071T17FH5508
Weight : 16.77 lb

filler

Price:
$489.59 $789.66

Availability : Usually Ships in 10 Business Days

Metric Motor; Motor Application: General Application; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 1/2; kW: 0.37; Nameplate RPM: 1695; Frame: 71; Voltage: 230/460; Hz: 60/50; Phase: 3; Full Load Amps: 1.8/0.9; Motor Mounting Type: Face/Base; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1.15; Motor Bearings: Ball; Motor Frame Material: Cast Aluminum; Max. Ambient Temp.: 40 Degrees C; Motor Shaft Rotation: CW/CCW; Shaft Dia.: 14 mm; Shaft Length: 30 mm; Motor Efficiency Group: Standard Efficient; Nominal Efficiency: 74 %; Duty: Continuous; Standards: CSA (LR2025), UL (E49747); Voltage Compatibility: 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460

ItemMetric Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1/2
kW0.37
Nameplate RPM1695
Frame71
Voltage230/460
Hz60/50
Phase3
Full Load Amps1.8/0.9
Motor Mounting TypeFace/Base
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.15
Motor BearingsBall
Motor Frame MaterialCast Aluminum
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.14 mm
Shaft Length30 mm
Motor Efficiency GroupStandard Efficient
Nominal Efficiency74 %
DutyContinuous
StandardsCSA (LR2025), UL (E49747)
Voltage Compatibility208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
