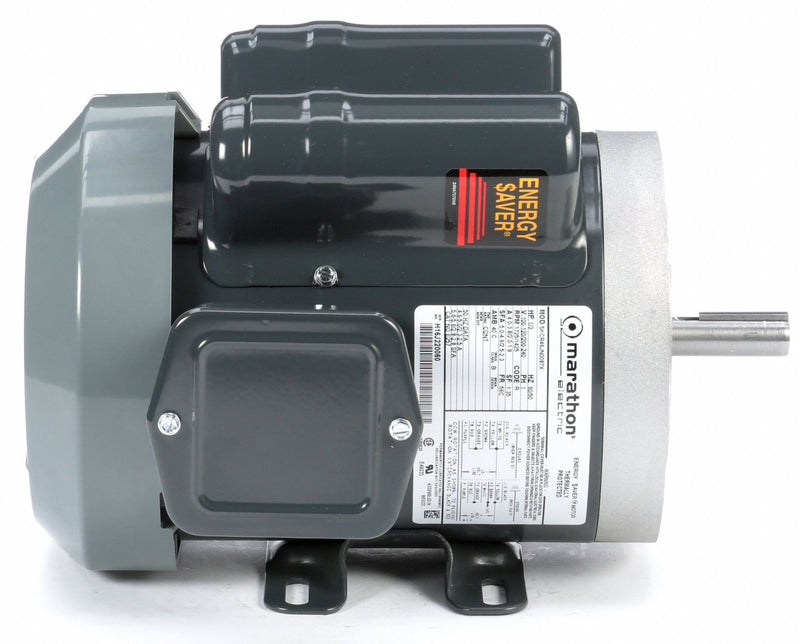

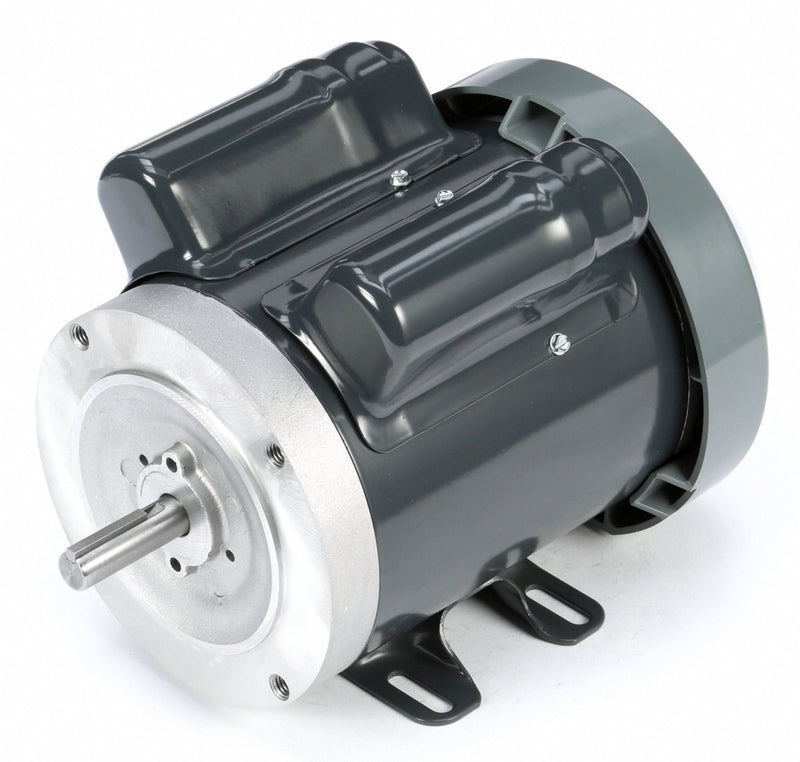

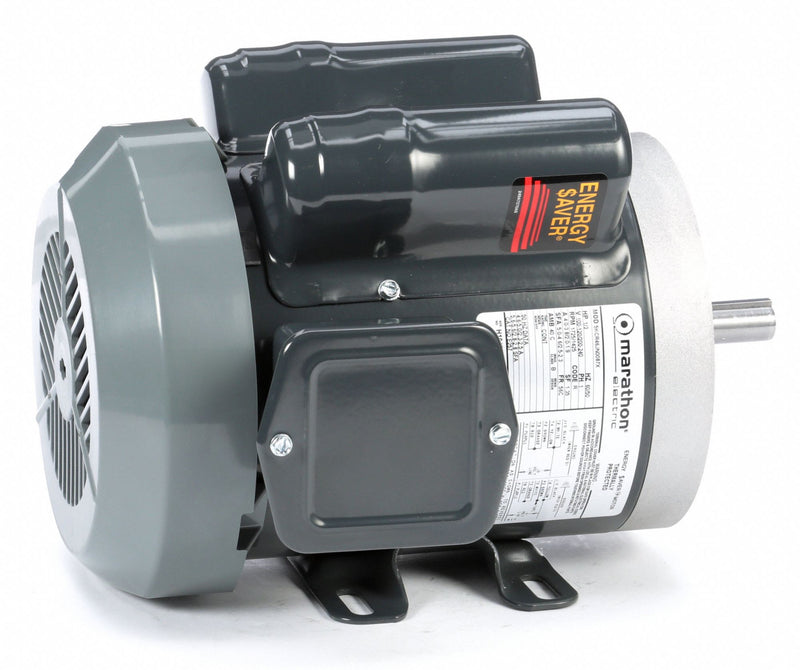

Use in applications including speed reducers, pumps, blowers, conveyors, and other equipment that mounts directly to a NEMA C-face motor. Totally enclosed motor is suitable for dusty, dirty, and nonhazardous environments. Includes side-mount conduit box.
| Item | General Purpose Motor |
| Motor Application | General Application |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1/3 |
| Nameplate RPM | 1725/1425 |
| Frame | 56C |
| Voltage | 120/240 |
| Hz | 60/50 |
| Phase | 1 |
| Full Load Amps | 4-3.8/2-1.9 |
| No. of Speeds | 1 |
| Motor Mounting Type | Face/Base |
| Motor Mounting Position | All Angle |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1.35 |
| Motor Bearings | Ball |
| Motor Frame Material | Steel |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Motor Shaft Design | Keyed |
| Standards | CSA (MC236833), UL (E14133) |
| Duty | Continuous |
| Motor Efficiency Group | Standard Efficient |
| Nominal Efficiency | 70.2 % |
| Manufacturers Warranty Length | 1 yr |
