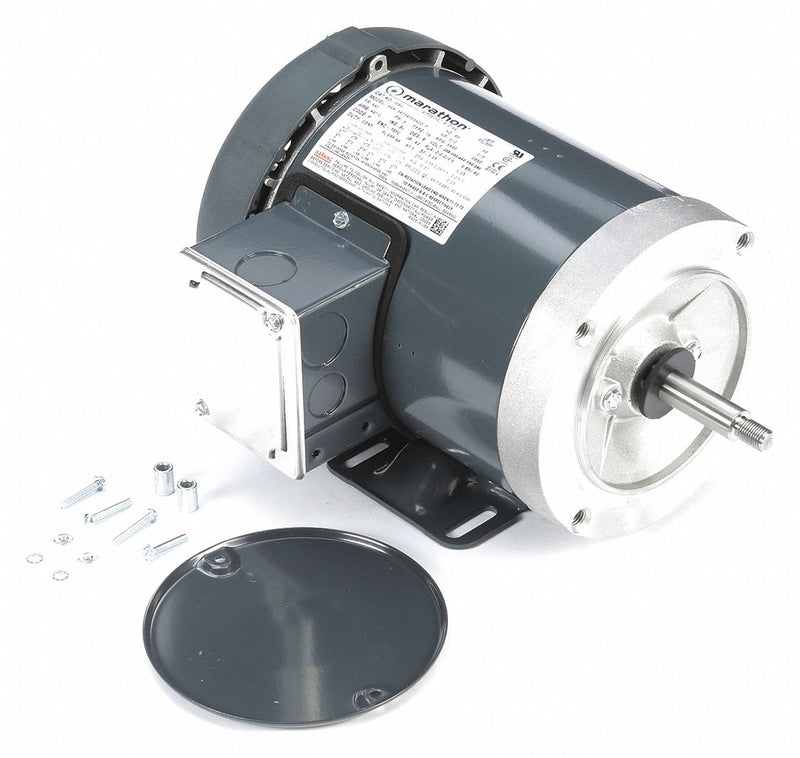

Marathon Motors 1/2 HP Jet Pump Motor, 3-Phase, 3450 Nameplate RPM, 208-230/460 Voltage, 56J Frame - 056T34F5342

MarathonSKU: C1548845
MPN : 056T34F5342
Weight : 23.25 lb

filler

Price:
$309.72 $377.71

Availability : Usually Ships in 1-3 Business Days

Jet Pump Motor; Motor Application: Pump; Motor Sub Application: Jet Pump; Motor Design: 3-Phase; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 1/2; Nameplate RPM: 3450; Frame: 56J; Motor Shaft Rotation: CW/CCW; Voltage: 208-230/460; Full Load Amps: 2.1-2.2/1.1; Phase: 3; Hz: 60/50; Motor Mounting Type: Face/Base; Motor Mounting Position: Horizontal or Vertical Shaft Down; Motor Bearings: Ball; Motor Thermal Protection: None; Motor Service Factor: 1.15; Max. Ambient Temp.: 40 Degrees C; Shaft Dia.: 5/8 in; Shaft Length: 2 9/16 in; Motor Shaft Design: Threaded; Shaft Material: Stainless Steel; Overall Length: 12 5/16 in; Body Dia.: 5 33/50 in; Ins. Class: B; Duty: Continuous; Motor Efficiency Group: Standard Efficient; Nominal Efficiency: 66 %; Includes: Drip Cover, Shaft Slinger; Standards: CSA Certified (LR2025), UL Recognized (E49747); Voltage Compatibility: 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460

ItemJet Pump Motor
Motor ApplicationPump
Motor Sub ApplicationJet Pump
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1/2
Nameplate RPM3450
Frame56J
Motor Shaft RotationCW/CCW
Voltage208-230/460
Full Load Amps2.1-2.2/1.1
Phase3
Hz60/50
Motor Mounting TypeFace/Base
Motor Mounting PositionHorizontal or Vertical Shaft Down
Motor BearingsBall
Motor Thermal ProtectionNone
Motor Service Factor1.15
Max. Ambient Temp.40 Degrees C
Shaft Dia.5/8 in
Shaft Length2 9/16 in
Motor Shaft DesignThreaded
Shaft MaterialStainless Steel
Overall Length12 5/16 in
Body Dia.5 33/50 in
Ins. ClassB
DutyContinuous
Motor Efficiency GroupStandard Efficient
Nominal Efficiency66 %
IncludesDrip Cover, Shaft Slinger
StandardsCSA Certified (LR2025), UL Recognized (E49747)
Voltage Compatibility208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
