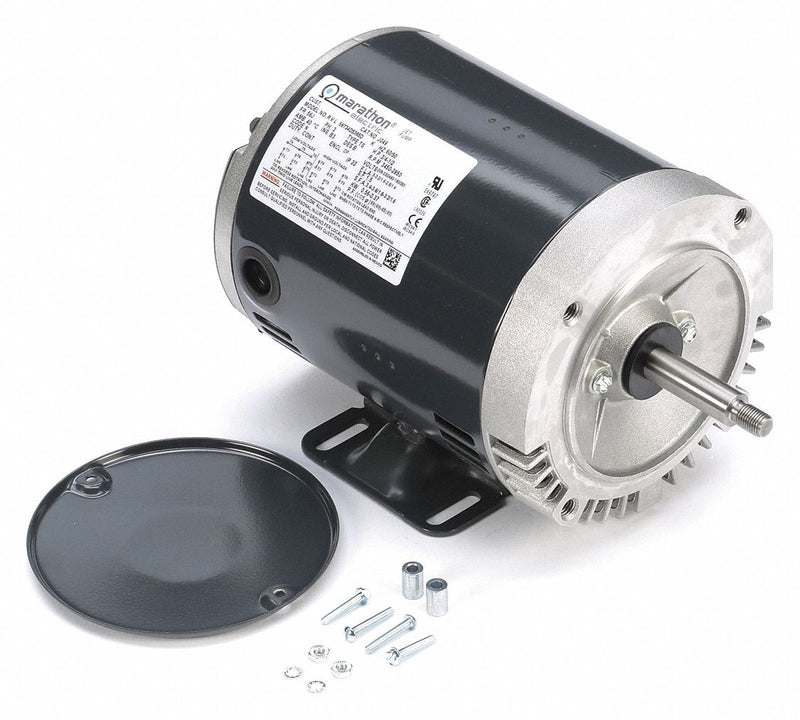

Marathon Motors 3/4 HP Jet Pump Motor, 3-Phase, 3450 Nameplate RPM, 208-230/460 Voltage, 56J Frame - 056T34D5365

MarathonSKU: C1548842
MPN : 056T34D5365
Weight : 21.55 lb

filler

Price:
$289.06 $352.51

Availability : Usually Ships in 1-3 Business Days

Jet Pump Motor; Motor Application: Pump; Motor Sub Application: Jet Pump; Motor Design: 3-Phase; Motor Enclosure Design: Open Dripproof; HP: 3/4; Nameplate RPM: 3450; Frame: 56J; Motor Shaft Rotation: CW/CCW; Voltage: 208-230/460; Full Load Amps: 3-3.2/1.6; Phase: 3; Hz: 60/50; Motor Mounting Type: Face/Base; Motor Mounting Position: Horizontal or Vertical Shaft Down; Motor Bearings: Ball; Motor Thermal Protection: None; Motor Service Factor: 1.5; Max. Ambient Temp.: 40 Degrees C; Shaft Dia.: 5/8 in; Shaft Length: 2 9/16 in; Motor Shaft Design: Threaded; Shaft Material: Stainless Steel; Overall Length: 10 15/16 in; Body Dia.: 5 33/50 in; Ins. Class: B; Duty: Continuous; Motor Efficiency Group: Standard Efficient; Nominal Efficiency: 74 %; Includes: Drip Cover, Shaft Slinger; Standards: CSA Certified (LR2025), UL Recognized (E49747); Voltage Compatibility: 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460

ItemJet Pump Motor
Motor ApplicationPump
Motor Sub ApplicationJet Pump
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP3/4
Nameplate RPM3450
Frame56J
Motor Shaft RotationCW/CCW
Voltage208-230/460
Full Load Amps3-3.2/1.6
Phase3
Hz60/50
Motor Mounting TypeFace/Base
Motor Mounting PositionHorizontal or Vertical Shaft Down
Motor BearingsBall
Motor Thermal ProtectionNone
Motor Service Factor1.5
Max. Ambient Temp.40 Degrees C
Shaft Dia.5/8 in
Shaft Length2 9/16 in
Motor Shaft DesignThreaded
Shaft MaterialStainless Steel
Overall Length10 15/16 in
Body Dia.5 33/50 in
Ins. ClassB
DutyContinuous
Motor Efficiency GroupStandard Efficient
Nominal Efficiency74 %
IncludesDrip Cover, Shaft Slinger
StandardsCSA Certified (LR2025), UL Recognized (E49747)
Voltage Compatibility208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
