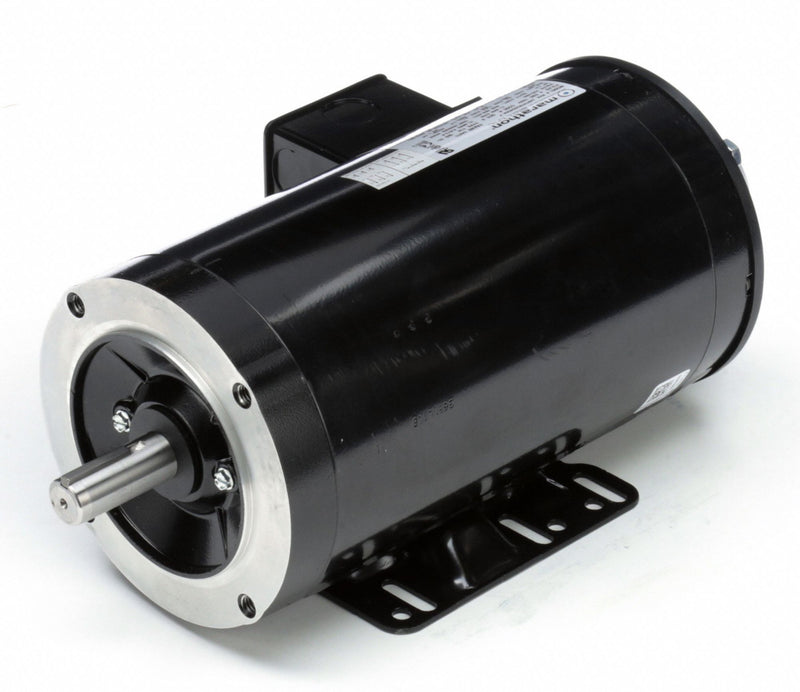

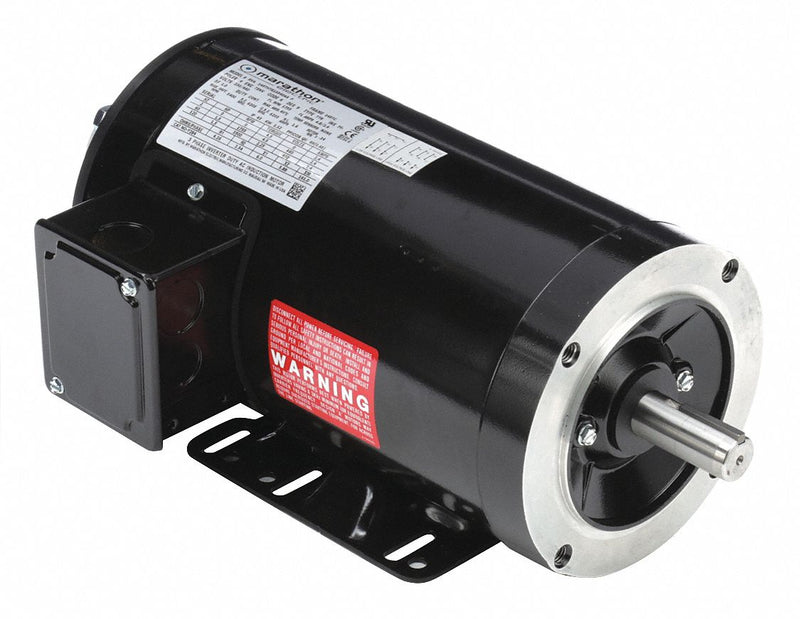

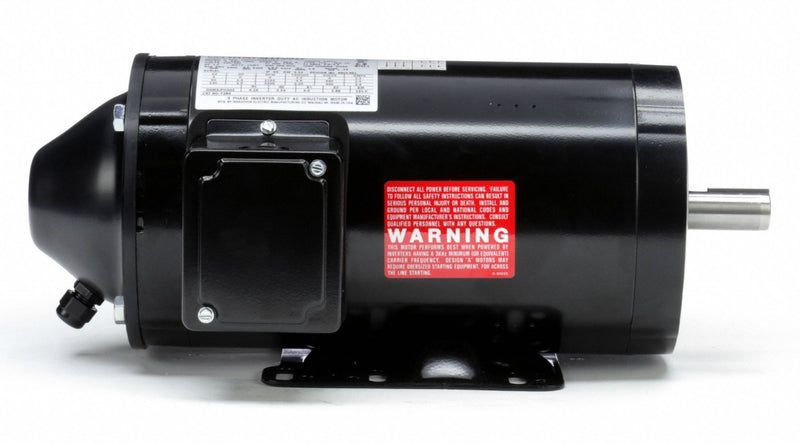

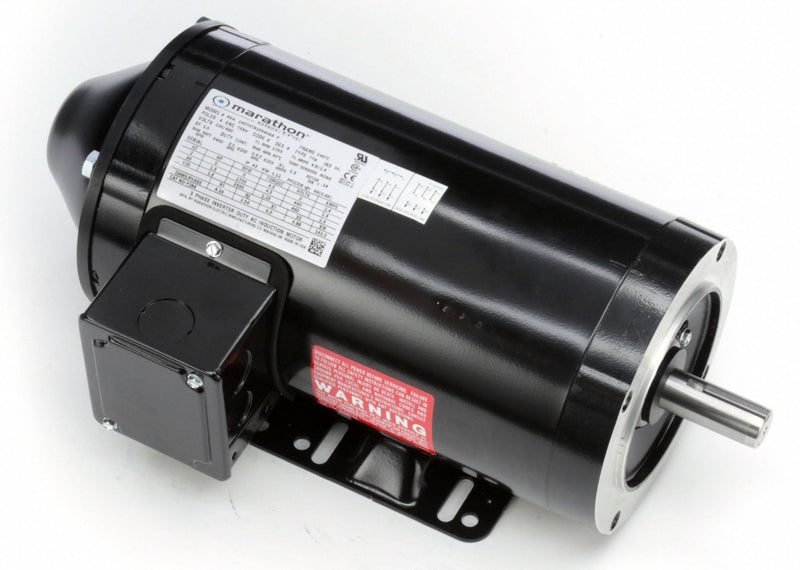

MAX Plus Vector-Duty 3-phase motor is designed as a plug-and-play motor/encoder combo unit compatible with most closed-loop vector-duty applications.,UL Recognized, CSA Certified.,Enclosure: totally enclosed nonventilated ,Service factor: 1.0 ,Insulation: Class H ,Max. ambient: 40C ,Max. Operating Frequency: 120Hz ,230/460V ,Bearings: ball ,Rotation: CW/CCW
| Item | Vector Motor |
| Motor Application | Crane |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| HP | 1 1/2 |
| Torque | 4.5 lb-ft |
| Nameplate RPM | 1755 |
| Speed Range | 1 CT |
| Max. Speed | 5,400 RPM |
| Frame | 145TC |
| Max. Operating Frequency | 120 Hz |
| Voltage | 230/460 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 4.8/2.4 |
| Motor Mounting Type | Face/Base |
| Motor Mounting Position | All Angle |
| Motor Shaft Rotation | CW/CCW |
| Motor Bearings | Ball |
| Motor Service Factor | 1 |
| Motor Thermal Protection | None |
| Ins. Class | H |
| Insulation Feature | CR200 magnet wire |
| Ambient Temperature | 40 Degrees C |
| Nominal Efficiency | 87.5 % |
| Motor Efficiency Group | Standard Efficient |
| NEMA Design | A |
| Motor Frame Material | Rolled Steel |
| Finish | Black |
| Base | Removable |
| Duty | Continuous |
| Encoder Acceptable | Included (1024 PPR) |
| Encoder Shaft | 5/8 x 1-3/4 in |
| Motor Shaft Design | Keyed |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/8 in |
| Overall Length | 16 1/16 in |
| Standards | CE, CSA Certified (LR2025), UL Recognized (E49747) |
| Warranty | 3 yr |
| RPM Range | 1701-1800 |
| Voltage Compatibility | 220-230/460, 230/460, 460 |
