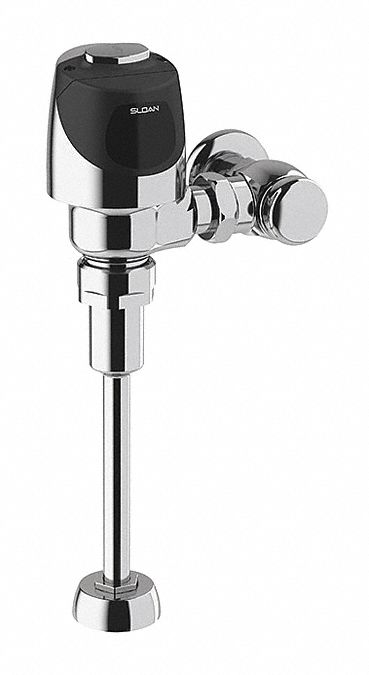

Sloan Exposed, Top Spud, Automatic Flush Valve, For Use With Category Urinals, 1.0 Gallons per Flush - G2 8186-1

SloanSKU: C1936125
MPN : G2 8186-1
Weight : 8.0 lb

filler

Price:
$836.70 $1,349.52

Availability : Usually Ships in 10 Business Days

Automatic urinal flush valves are sized to fit urinals. These sensor-operated valves have a spud coupling for attaching to a urinal spud.,Automatic flush valves are sensor-operated valves for flushing tankless toilets and urinals. Also known as automatic flushometers, these flow-control devices don't require user contact to activate, so they help decrease the spread of germs. Their sensor automatically triggers flushing after a set time period or once a user has moved out of sensing range. They're ideal for ensuring flushing in public restrooms and high-use areas.

ItemAutomatic Flush Valve
Flush Valve LocationExposed
Fixture ConnectionTop Spud
Brand and SeriesSloan G2
For Use With CategoryUrinals
Basic Power SourceBattery
Battery Life3 yr @ 4000 Flushes/Month
Flush ModeSingle Flush
Gallons per Flush1
Flush Valve DesignDiaphragm
Rough-In11 1/2 in
Spud Coupling3/4 in
Inlet Size3/4 in IPS
Sensor Range15 in to 30 in
Pressure Range15 to 100 psi
FinishChrome
Includes(4)AA Batteries
Manufacturers Warranty Length3 yr
StandardsANSI/ASME A112.192, ASSE 1037
