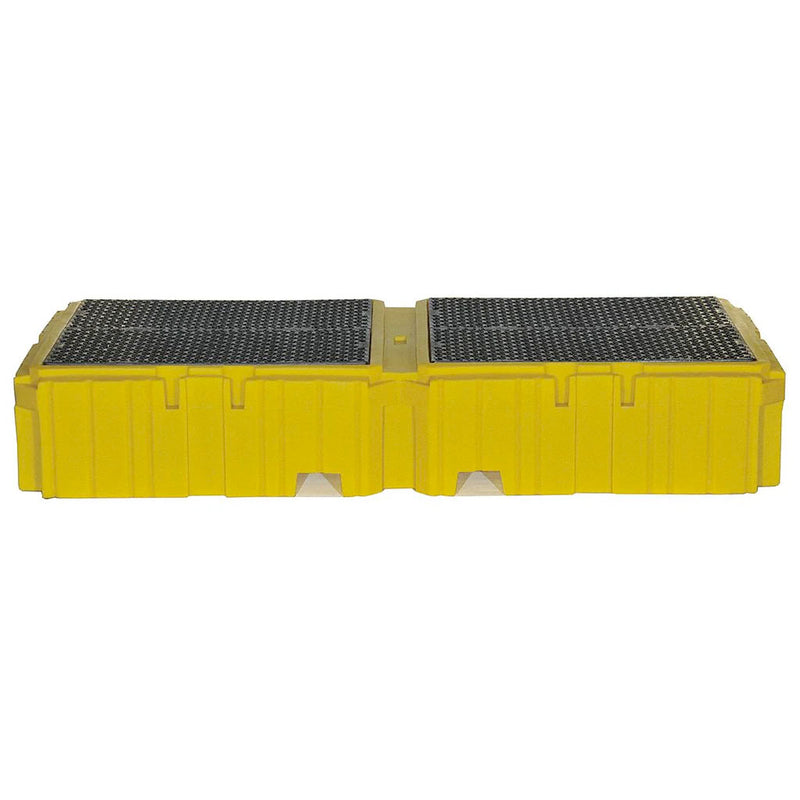

Twin IBC spill containment unit with drain. Features a 1-pc. molded sump that meets EPA and SPCC spill containment regulations for 2 IBC tanks. Polyethylene construction for chemical resistance; will not rust or corrode. Large 52" x 52" deck with removable grates for easy cleanup. Forklift access. Low-profile design for safe, convenient dispensing.
Product Highlights
- Use for intermediate bulk containers (IBCs), drums, or other large vessels (all materials stored must be chemically compatible).
- Heavy-duty construction can handle up to 8,000 lbs. per side (UDL).

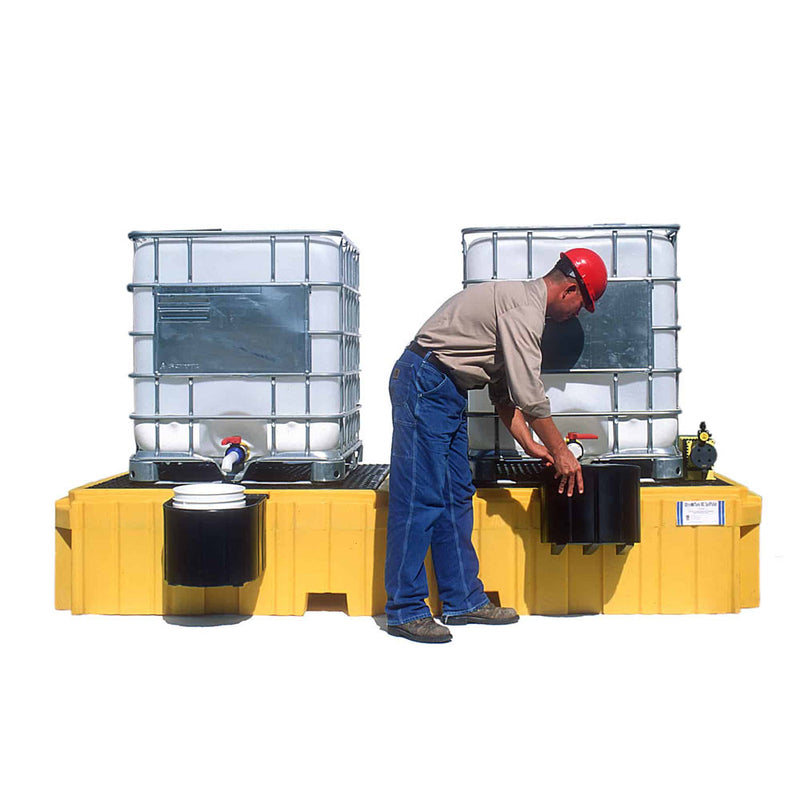

- Available with optional bucket shelf for either or both sides - catches small leaks or spills during dispensing.

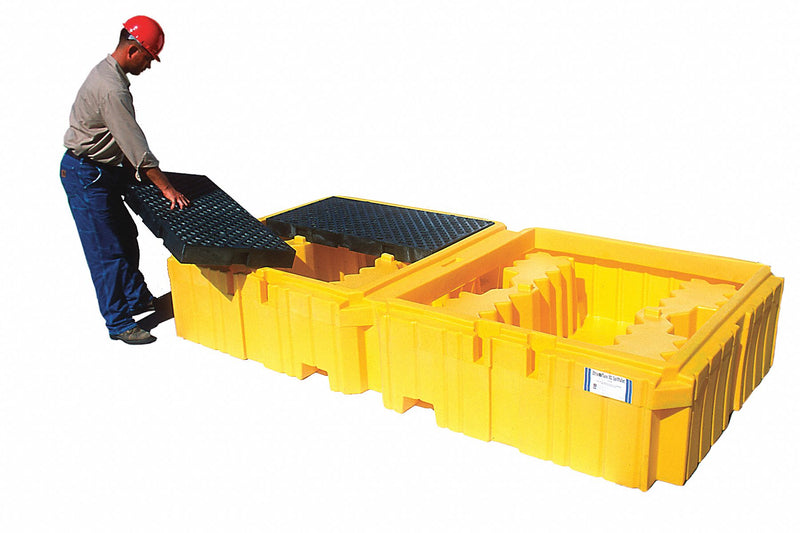

- Grates are easily removed for quick clean-up.
- One continuous sump holds 535 gallons - meets EPA spill containment and SPCC regulations for two IBC tanks.
Frequently Asked Questions
Each side has two removable grates. The sump, however, is one piece and cannot be disassembled.
Is the sump continuous or is it two separate compartments?
The 535-gallon sump is continuous. In other words, a spill from one side will eventually make its way over to the other side. There is no barrier to separate the two sides. It is important to note that chemicals stored on the Ultra-Twin IBC Spill Pallet must be compatible.
Why are there so many different options for bucket shelves?
Bucket shelves use bulkhead fittings to return any spilled contents back into the sump. The bulkhead fittings are installed at the factory prior to shipping the unit out so we need to know where bucket shelf(ves) will be located. A shelf may be added at a later date (after the unit has been received) but without the bulkhead fitting, any spillage will be “trapped” in the bottom of the shelf.
Can I move the Ultra-Twin IBC Spill Pallet with IBCs on top?
No. IBCs, tanks, totes, drums and other items must be removed from the pallet surface prior to moving it.
What is the size of the grating that each IBC sits on?
Each side of the Ultra-Twin IBC Spill Pallet has a usable surface that is 52″ x 52″. This surface comprised of two removable grates that are each 26″ x 52″.
Can the Ultra-Twin IBC Spill Pallet support an IBC that has pedestal posts for legs, or just flat bottom IBCs?
The pallet has an 8,000 lb. per side capacity. This is for uniformly distributed loads. An IBC that is supported by pedestal post or feet focuses all of its weight on those feet. If the dimensions of those feet are not large enough to properly displace the weight on the spill pallet’s grating, it could be an issue. As a precaution, steel plates (at least 12″ x 12″) can be used under the feet in order to more evenly distribute the weight over a greater area.
| Item | Twin IBC Containment Unit |
| IBC Containment Product Type | IBC Containment Unit |
| Covered/Uncovered | Uncovered |
| Number of IBCs | 2 |
| Spill Containment Load Capacity | 8,000 lb |
| Spill Capacity | 535 gal |
| Length | 124 1/2 in |
| Width | 61 5/8 in |
| Height | 22 in |
| Drain Included | Yes |
| Standards | EPA 40 CFR 264.175, SPCC |
| Material | Polyethylene |
