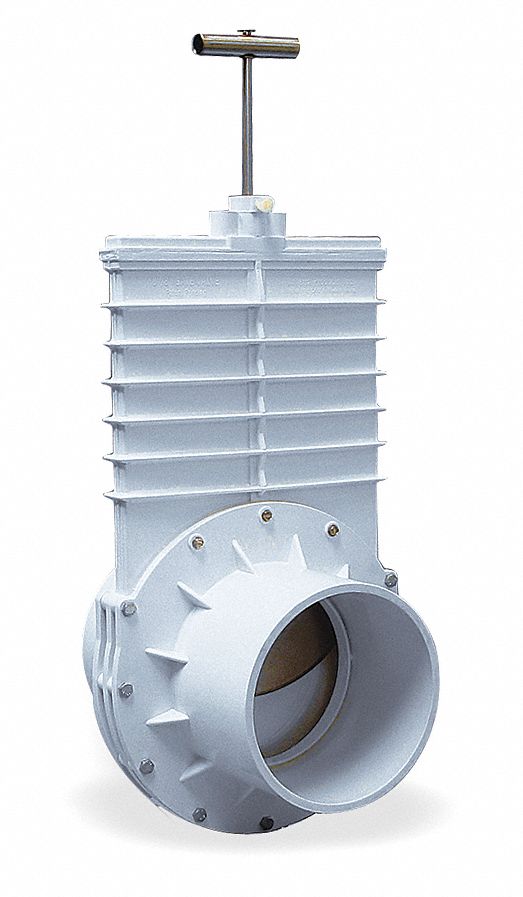

Quick-opening VALTERRA gate valve provides unrestricted flow for low-pressure tank and drain applications with liquids, gases, dry/bulk solids, and slurry. Body is tough PVC construction for durability and long life. Model also provides quick shutoff in low-pressure or vacuum lines. Valve can be easily disassembled for in-line servicing.
| Item | Gate Valve |
| Valve Class | Class 125 |
| Body Material - Valves | PVC |
| Connection Type | Slip |
| Pipe Size - Valves | 12 in |
| Max. Water Pressure - CWP | 10 psi |
| Valve Max. Fluid Temp. | 167 Degrees F |
| Valve Stem Type | Rising |
| Top of Handle to Inlet Center | 23 3/4 in |
| Inlet to Outlet Length | 15 1/8 in |
| Stem Material | 304 Stainless Steel |
| Bonnet Style | Bonded |
| Wedge Material | 304 Stainless Steel |
| Handle Material | 304 Stainless Steel |
| Handle Type | Hand Wheel |
| Standards | MSS SP-70 |
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
