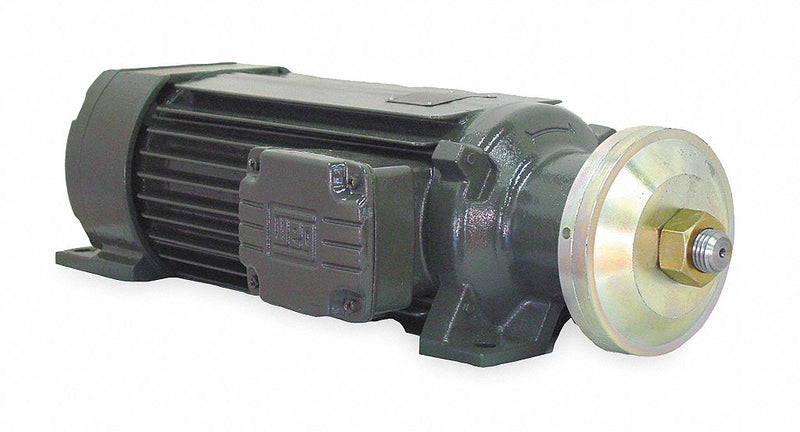

Saw Arbor Motors,Type: 3-phase Enclosure: IP54 (totally enclosed fan-cooled) Mounting: foot Service factor: 1.0 Insulation: Class F with Class B temperature rise Max. ambient: 40C Thermal protection: none Bearings: ball Shaft thread: M30x3.5,Cast-iron construction for severe duty applications. For use with circular saws, pendulum saws, grinding and polishing machines.,UL Recognized; CSA and CE Certified.
| Item | Saw Arbor Motor |
| Motor Application | Power Tool |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 10 |
| Nameplate RPM | 3480 |
| Frame | 90L |
| Voltage | 575 |
| Hz | 60 |
| Phase | 3 |
| Full Load Amps | 9.83 |
| Motor Mounting Type | Rigid Base |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1 |
| Motor Bearings | Ball |
| Ambient Temperature | 40 Degrees C |
| Motor Shaft Rotation | CWSE |
| Length Less Shaft | 24 1/4 in |
| Shaft Dia. | 30 mm |
| Shaft Length | 2 1/2 in |
| Standards | CE, CSA Certified (LR50.962-9/13/14), UL Recognized (E104590) |
| Includes | PG Threaded Terminal Box |
| RPM Range | 3001-3600 |
| Voltage Compatibility | 575 |
