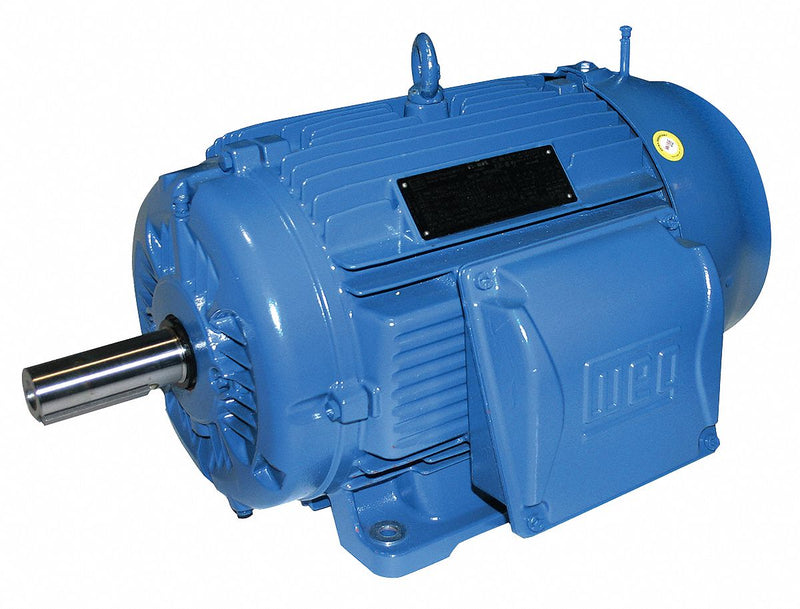

3-Phase, Totally Enclosed Fan-Cooled Metric Motors,Foot-Mount and Foot/B5 Flange-Mount Motors,Insulation class: F Voltage: 460V Max. ambient: 40C Thermal protection: None Rotation: CW/CCW,IEC motors exceed NEMA premium and IE3 efficiency levels. IP55 enclosures are excellent for use in dirty/dusty environments. Aluminum frame models have repositionable mounting feet that allow multimounting, as well as F1, F2, and F3 positioning. Flange-mount units have a B5 mount/FF flange.
| Item | Metric Motor |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 20 |
| kW | 15 |
| Nameplate RPM | 1180 |
| Frame | 180L |
| Voltage | 460 |
| Hz | 60/50 |
| Phase | 3 |
| Full Load Amps | 24.7 |
| Motor Mounting Type | Rigid Base |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.25 |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Shaft Dia. | 42 mm |
| Shaft Length | 110 mm |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 91.7 % |
| CC Number | CC029A |
| Duty | Continuous |
| Standards | CE, CSA (LR38324), UL (E104590) |
| Voltage Compatibility | 208-230/460, 460 |
| Green Certification or Other Recognition | NEMA Premium(R) Rated |
