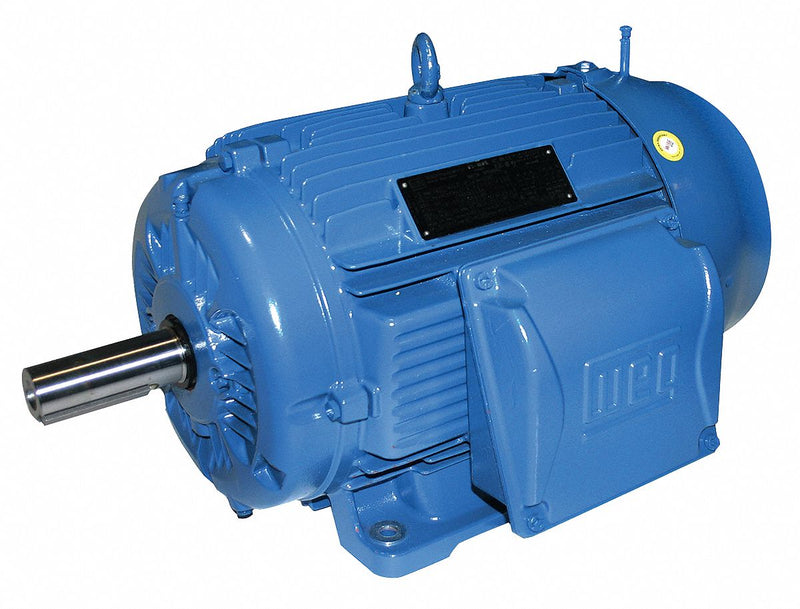

3-Phase, Totally Enclosed Fan-Cooled Metric Motors,Foot-Mount and Foot/B5 Flange-Mount Motors,Insulation class: F Voltage: 460V Max. ambient: 40C Thermal protection: None Rotation: CW/CCW,IEC motors exceed NEMA premium and IE3 efficiency levels. IP55 enclosures are excellent for use in dirty/dusty environments. Aluminum frame models have repositionable mounting feet that allow multimounting, as well as F1, F2, and F3 positioning. Flange-mount units have a B5 mount/FF flange.
Item | Metric Motor |
Motor Application | General Application |
Motor Design | 3-Phase |
Motor Enclosure Design | Totally Enclosed Fan-Cooled |
HP | 40 |
kW | 30 |
Nameplate RPM | 1780 |
Frame | 200L |
Voltage | 460 |
Hz | 60/50 |
Phase | 3 |
Full Load Amps | 49.4 |
Motor Mounting Type | Rigid Base |
Motor Thermal Protection | None |
Ins. Class | F |
Motor Service Factor | 1.25 |
Motor Bearings | Ball |
Motor Frame Material | Cast Iron |
Max. Ambient Temp. | 40 Degrees C |
Motor Shaft Rotation | CW/CCW |
Shaft Dia. | 55 mm |
Shaft Length | 110 mm |
Motor Efficiency Group | NEMA Premium Efficient |
Nominal Efficiency | 94.1 % |
CC Number | CC029A |
Duty | Continuous |
Standards | CE, CSA (LR38324), UL (E104590) |
Voltage Compatibility | 208-230/460, 460 |
Green Certification or Other Recognition | NEMA Premium(R) Rated |
