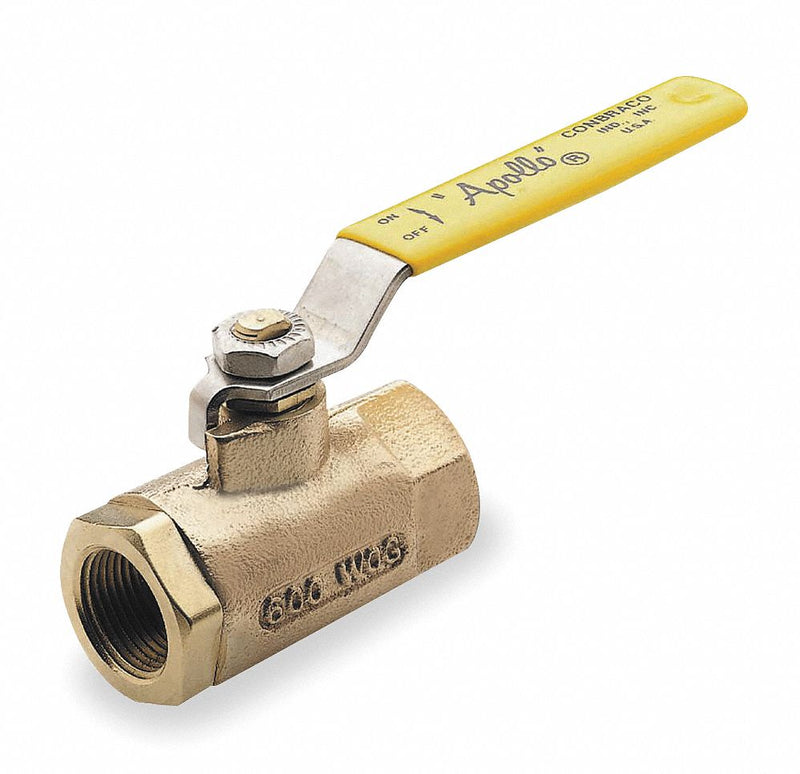

Apollo Ball Valve, Bronze B584, Inline, 2-Piece, Pipe Size 3/4 in, Connection Type FNPT x FNPT - 7014464

Apollo ValvesSKU: C1933367
MPN : 7014464
Weight : 1.6 lb

filler

Price:
$115.82 $186.81

Availability : Usually Ships in 10-12 Business Days

Industrial valve has vented ball slot to relieve thermal expansion in valve body cavity. With MPTFE stem packing and adjustable packing gland. For use with high-pressure water, oil, gas, and steam. Meets MSS-SP-110 standards.

ItemBall Valve
Body MaterialBronze B584
Body StyleInline
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size3/4 in
Connection TypeFNPT x FNPT
PortStandard
Max. Pressure600 psi CWP
Max. Steam Pressure250 psi WSP
Temp. Range-20 Degrees to 450 Degrees F
Ball Material316 Stainless Steel
Seat MaterialMPTFE
Stem TypeBlowout Proof
Handle TypeLever
Handle MaterialZinc Plated Steel
Stem Material316 Stainless Steel
Body Seal MaterialPTFE
Features250# WSP
Ball Valve Product GroupManual
Valve Basic Body MaterialBronze
StandardsMSS SP-110
Overall Length3 in
