Century AO Smith AR2024 Split-Phase Resilient Motor, 1/4 HP, Split-Phase, 1725 RPM, 115V, 48 Frame

CenturySKU: c2090473
MPN : AR2024
Weight : 15.0 lb

filler

Price:
$219.89 $268.16

Availability : Usually Ships in 3-5 Business Days

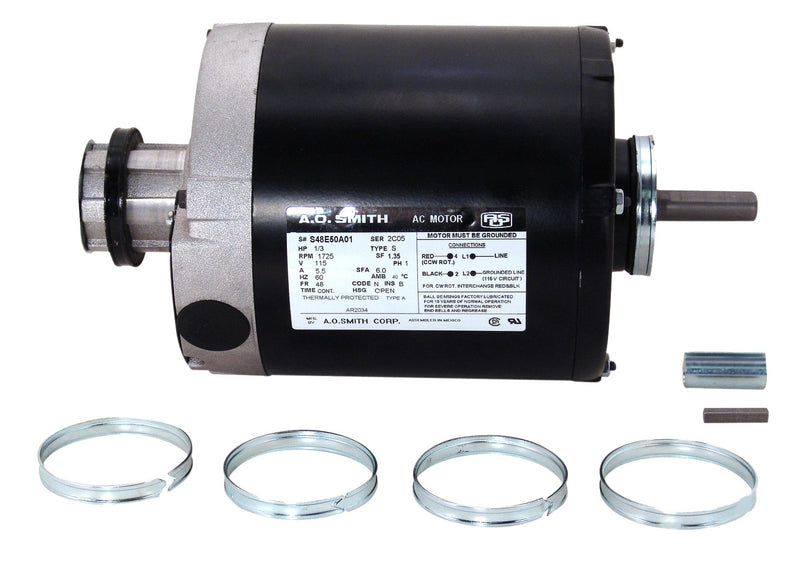

  • Features: Includes 5/8" dia keyed shaft adaptor, "Quick-Fit" with adjustable ring to ring dimensions of 7.1" to 8.4

Item: Direct Drive Blower Motor, Motor Type: Split-Phaselit Phase, HP: 1/4, Nameplate RPM: 1725, Voltage: 115, Frame: 48, Enclosure: Drip Proof, Rotation: CW/CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.35, Insulation Class: B, Bearings: Sleeve, Base: Resilient, Shaft Type: Flat or Key, Shaft Number: 1, Shaft Length: 1.625", Shaft Height: 3", Shaft Dia.: 0.5", Ring to Ring Center: 7.1", "C" Dim: 9.5, Protection: Auto, Thermal Protection: Yes, Cooling: Ambient.

ItemDirect Drive Blower Motor
Motor TypeSplit-Phaselit Phase
HP1/4
Nameplate RPM1725
Voltage115
Frame48
EnclosureDrip Proof
RotationCW/CCW
Hz60
Phase1
Speeds1
Service Factor1.35
Insulation ClassB
BearingsSleeve
BaseResilient
Shaft TypeFlat or Key
Shaft Number1
Shaft Length1.625"
Shaft Height3"
Shaft Dia.0.5"
Ring to Ring Center7.1"
"C" Dim9.5
ProtectionAuto
Thermal ProtectionYes
CoolingAmbient
