- Features: 40 degree C ambient, Continuous duty

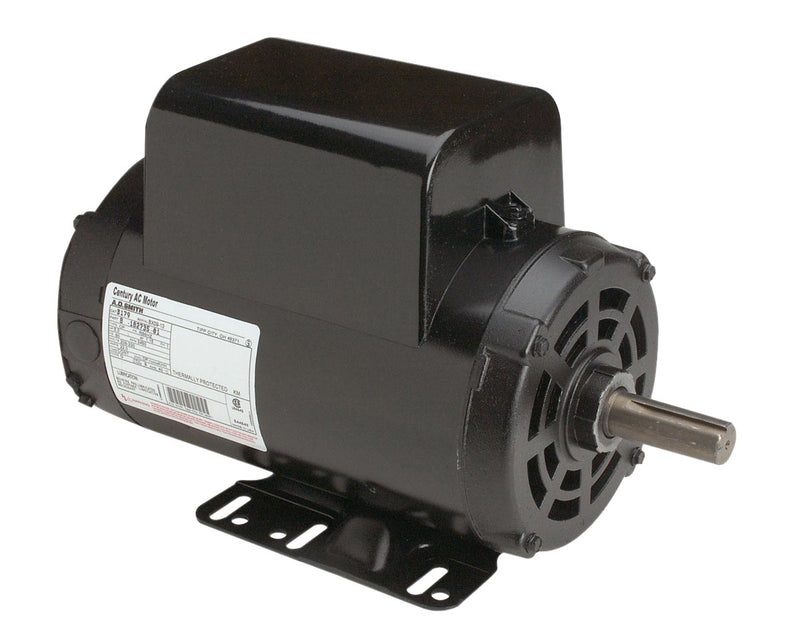

Item: Air Compressor Motor, Motor Type: Capacitor-Start/Capacitor-Run, HP: 5, Nameplate RPM: 3600, Voltage: 208-230, Frame: 56HZ, Enclosure: Drip Proof, Rotation: CCW, Hz: 60, Phase: 1, Speeds: 1, Service Factor: 1.15, Insulation Class: B, Bearings: Ball, Base: Rigid, Shaft Type: Key, Shaft Number: 1, Shaft Length: 2.25", Shaft Height: 3.5", Shaft Dia.: 0.875", "C" Dim: 14.6, Protection: Manual, Thermal Protection: Yes, Cooling: Ambient.
| Item | Air Compressor Motor |
| Motor Type | Capacitor-Start/Capacitor-Run |
| HP | 5 |
| Nameplate RPM | 3600 |
| Voltage | 208-230 |
| Frame | 56HZ |
| Enclosure | Drip Proof |
| Rotation | CCW |
| Hz | 60 |
| Phase | 1 |
| Speeds | 1 |
| Service Factor | 1.15 |
| Insulation Class | B |
| Bearings | Ball |
| Base | Rigid |
| Shaft Type | Key |
| Shaft Number | 1 |
| Shaft Length | 2.25" |
| Shaft Height | 3.5" |
| Shaft Dia. | 0.875" |
| "C" Dim | 14.6 |
| Protection | Manual |
| Thermal Protection | Yes |
| Cooling | Ambient |
