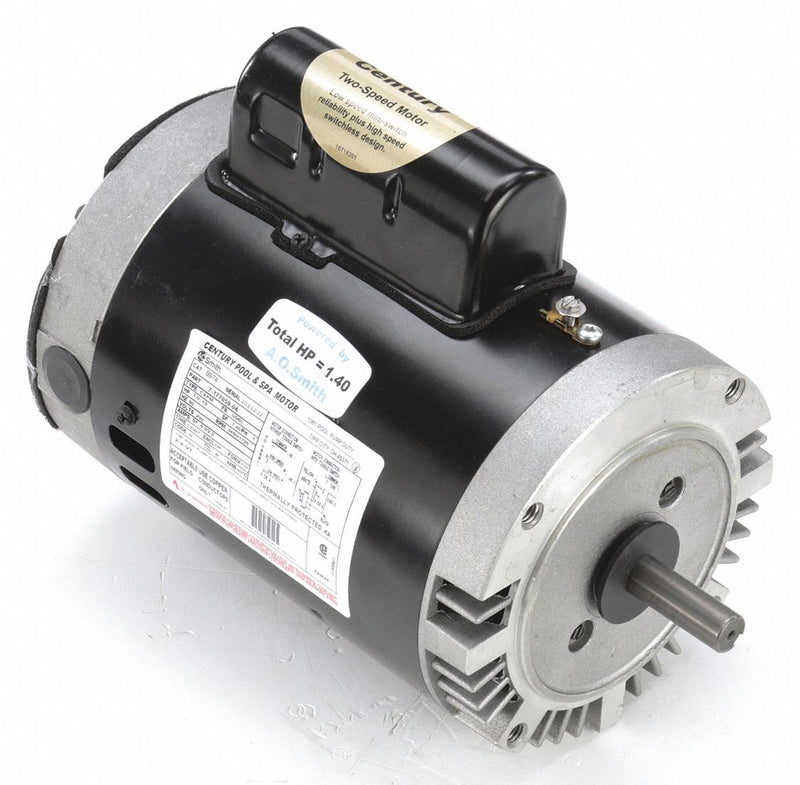

Pool and Spa Pump Motor; Motor Application: Pump; Motor Sub Application: Pool and Spa Pump; Motor Design: Permanent Split Capacitor; Motor Enclosure Design: Open Dripproof; HP: 1, 1/8; Nameplate RPM: 3450/1725; Frame: 56C; Motor Shaft Rotation: CCWSE; Voltage: 230; Full Load Amps: 6.3/2.3; Phase: 1; Hz: 60; Motor Mounting Type: Face; Motor Bearings: Ball; Finish: Black; Motor Flange Material: Aluminum; Shaft: Keyed; Shaft Material: AISI 1215 Steel; Motor Thermal Protection: Auto; Motor Service Factor: 1.4; Ambient Temperature: 40 Degrees C; Shaft Dia.: 5/8 in; Shaft Length: 2 1/16 in; Ins. Class: B; RPM Range: 3001-3600; Motor Efficiency Group: Standard Efficient; Standards: CSA Certified (LR43341/LR94643), UL 1081 Approvable, UL Recognized (E44549/E25022); Voltage Compatibility: 115/230, 120/240, 230, 240
| Item | Pool and Spa Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Pool and Spa Pump |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Dripproof |
| HP | 1, 1/8 |
| Nameplate RPM | 3450/1725 |
| Frame | 56C |
| Motor Shaft Rotation | CCWSE |
| Voltage | 230 |
| Full Load Amps | 6.3/2.3 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Face |
| Motor Bearings | Ball |
| Finish | Black |
| Motor Flange Material | Aluminum |
| Shaft | Keyed |
| Shaft Material | AISI 1215 Steel |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1.4 |
| Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 1/16 in |
| Ins. Class | B |
| RPM Range | 3001-3600 |
| Motor Efficiency Group | Standard Efficient |
| Standards | CSA Certified (LR43341/LR94643), UL 1081 Approvable, UL Recognized (E44549/E25022) |
| Voltage Compatibility | 115/230, 120/240, 230, 240 |
